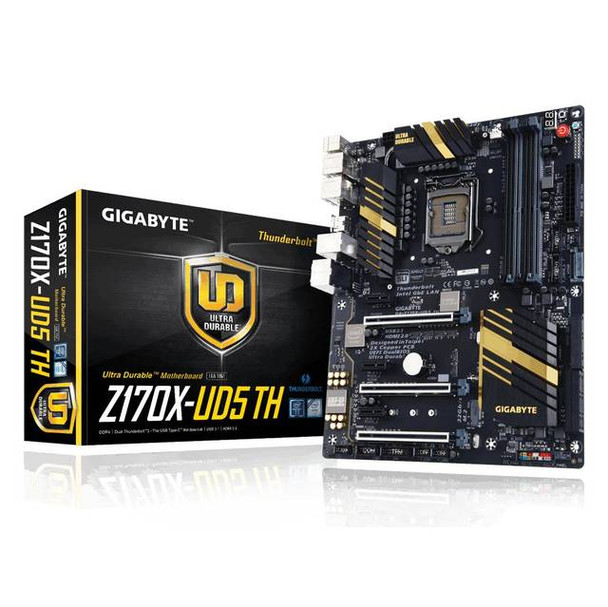

GIGABYTE GA-Z170X-UD5 TH LGA1151/ Intel Z170/ DDR4/ 3-Way CrossFireX & 2-Way SLI / SATA3&USB3.1/ M.2&SATA Express/ A&GbE/ ATX Motherboard
(No reviews yet)
Write a Review
- Brand:
- GIGABYTE
- Part Number #
- GA-Z170X-UD5 TH
- Condition:
- Refurbished
- Availability:
- IN STOCK - COMES WITH 30 DAYS WARRANTY
$1,714.74
$1,428.96
- You save $285.78
Description
Specifications
- Mfr Part Number: GA-Z170X-UD5 TH
- CPU: LGA1151
- Supports Intel Core i7/ i5/ i3/ Pentium / Celeron Processors
- Chipset: Intel Z170 Express
- Memory: 4x DDR4-3800(OC)/ 3733(OC)/ 3666(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666(OC)/ 2400(OC)/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 3x PCI-Express 3.0 x1 Slots
- Multi-Graphics: Supports 3-Way/ 2-Way AMD CrossFireX Technology and 2-Way NVIDIA SLI Technology
- Storage:
- SATA: 6x SATA3 Ports, support RAID 0, 1, 5, 10, 3x SATA Express Ports
- M.2: 1x M.2 Port
- Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC, Supports S/PDIF Output
- LAN: Intel I219V Gigabit Ethernet Controller
- Ports: 2x USB 3.1 Type-C Ports, 8x USB 3.0/2.0 Ports (4 rear, 4 via headers), 8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1x PS/2 Keyboad/Mouse Port, 1x HDMI Port, 2x Thunderbolt Ports, 1x RJ45 LAN Port, 1x Optical S/PDIF Out, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: ATX, 30.5 x 24.4 cm
Read Before Orderings
- Product images are for illustrative purposes only and the final product delivered may vary from the one shown above.
- In some cases, a product sold may arrive in different packaging than its original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
- At checkout, the shipping cost is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
- Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
- Refurbished printers may not have full ink cartridges or laser toners.
- Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
- Please note if you are concerned about any of the above conditions or have any question at all, we highly recommend that you contact us on sales@ithardwarehub.com or call 425-615-6227 before placing an order.
