Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K @ 100m - BHDBT-K-SI-LR

(No reviews yet) Write a Review
Brand:
Tripp Lite
Part Number #
BHDBT-K-SI-LR
UPC:
37332187093
Availability:
In Stock
$750.80 $625.67
- You save $125.13
  • Tripp Lite BHDBT-K-SI-LR
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: BHDBT-K-SI-LR
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: BHDBT-K-SI-LR
Product Name: BHDBT-K-SI-LR Video Console/Extender

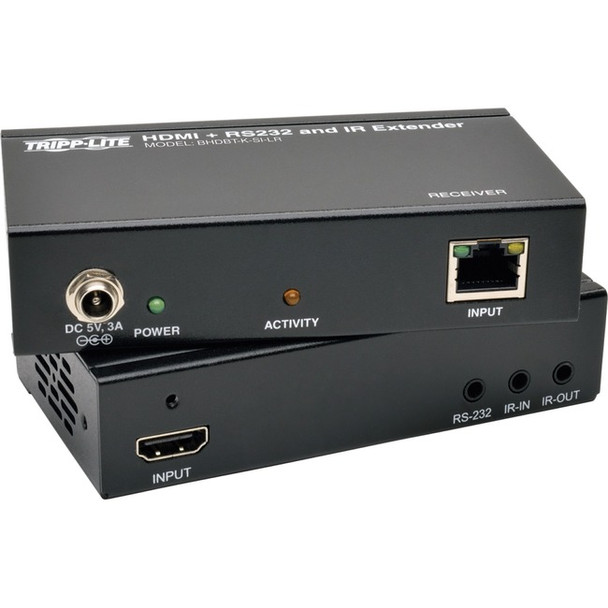

Marketing Information: The BHDBT-K-SI-LR HDBaseT Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 328 feet(100 m) over a single Cat5e/6/6a cable. This includes 1920 x 1080(1080p) signals @ 60 Hz and even Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz video signals. Add up to five Tripp Lite BHDBT-TR-SI-LR transceivers(sold separately) between the transmitter and receiver units to further expand the range up to 2,000 feet(600 m) with a monitor connected via HDMI port to each transceiver.You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI-LR's 2-way IR Remote Control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The BHDBT-K-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There's no software to download or install, and you can have the BHDBT-K-SI-LR Extender Kit set up and ready to go quickly. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.
Product Type: Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 328 ft
Video
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Physical Characteristics
Color: Black
Form Factor:
  • Pole-mountable
  • Wall Mountable
  • Rack-mountable

Transmitter Weight (Approximate): 1.05 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
  • RoHS
  • REACH

TAA Compliant: Yes
