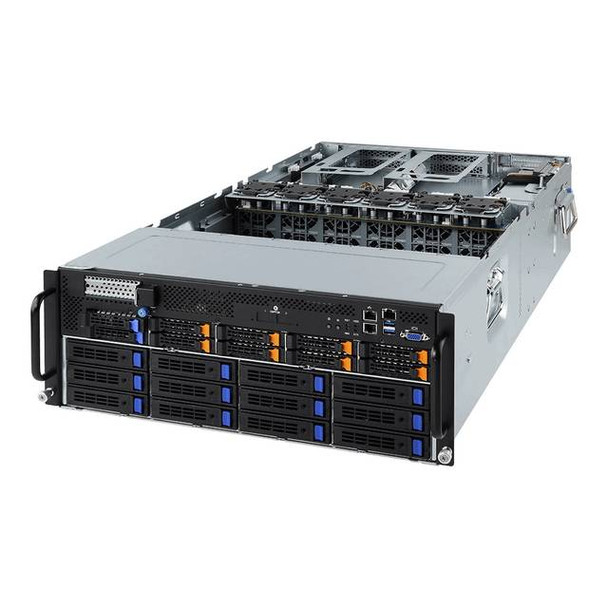

GIGABYTE G481-HA0 Dual LGA3647/ Intel C621/ DDR4/ V&6GbE 4U Rackmount Server Barebone System

(No reviews yet) Write a Review
Part Number #
In Stock
$13,256.10 $11,046.75
- You save $2,209.35
  • GIGABYTE G481-HA0 Dual LGA3647/ Intel C621/ DDR4/ V&6GbE 4U Rackmount Server Barebone System
Don't like the price? Make an offer!
Get bulk pricing



  • Mfr Part Number: G481-HA0
  • Motherboard: MG61-G40
  • Processor: Dual LGA3647
    • Supports Intel Xeon Scalable Family Processor
    • Supports Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor, Intel Xeon Bronze Processor
    • CPU TDP up to 205W
  • Chipset: Intel C621 Express
  • Memory: 24x DDR4 - 2666/ 2400/ 2133 MHz DIMM Slots, 6-Channel
    • Support RDIMM modules up to 64GB
    • Support LRDIMM modules up to 128GB
  • Slots: 10x PCI-Express 3.0 x16 Slots for GPUs; 1x PCI-Express 3.0 x16 Slot (runs at  x8, Half-length low-profile slot in front, occupied by CRA3338 HBA); 1x PCI-Express 3.0 x16 Slot (Half-length low-profile slot at rear)
  • SATA: Supported
  • SAS: Supported
  • Video: Integrated Aspeed AST2500 Graphics
  • LAN:
    • Rear Side: 2x Intel X550-AT2 10Gb/s BASE-T LAN Ports, 1x 10/100/1000 management LAN
    • Front Side: 2x Intel I350-AM2 1Gb/s BASE-T LAN Ports
  • Drive Bays: 12x 3.5" hot-swappable HDD/SSD bays, 10x 2.5" hot-swappable HDD/SSD bays
  • Ports: 2x USB 3.0 Ports (front), 1x VGA Port, 4x RJ45 LAN Ports (2 front, 2 rear), 1x MLAN Port (front, Reserved, enabled by cable switch), 1x MLAN (rear, Primary port)
  • Form Factor: 4U Rackmount
  • Power Supply: 3x 2200W 80 PLUS Platinum Redundant Power Supply
  • System Cooling: 4x (40x40x28mm) Fans (25000rpm), 12x (60x60x38mm) Fans (23000rpm)
  • Dimensions (WxDxH): 448.0 x 880.0 x 176.0 mm
  • Weight: 39.0 kg
