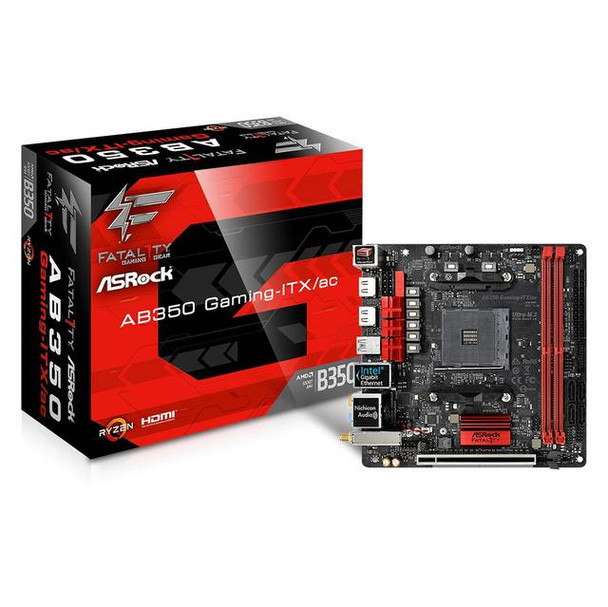

ASRock AB350 GAMING-ITX/AC Socket AM4/ AMD Promontory B350/ DDR4/ SATA3&USB3.0/ M.2/ WiFi/ A&GbE/ Mini-ITX Motherboard

(No reviews yet) Write a Review

Brand:

ASRock

Part Number #

AB350 GAMING-ITX/AC

Condition:

Refurbished

Availability:

IN STOCK - COMES WITH 30 DAYS WARRANTY

$630.92 $525.77

- You save $105.15

Description

Specifications

Mfr Part Number: AB350 GAMING-ITX/AC
CPU: Socket AM4
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
- Digi Power design
- 8 Power Phase design
- Supports 95W Water Cooling
Chipset: AMD Promontory B350
Memory: 2x DDR4 DIMM Slots, AMD Ryzen series CPUs support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory; AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 ECC & non-ECC, un-buffered memory
Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8)
Storage:
- SATA: 4x SATA3 Ports
- M.2: 1x Ultra M.2 Socket, supports type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)
Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
LAN: Intel I211AT Gigabit Ethernet Controller; IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2 / 3.0 + High speed class II
Ports: 6x USB 3.0 Ports (1 Type-A rear, 1 Type-C rear, 2 rear, 2 via headers), 4x USB 2.0 Ports (4 via headers, 2 rear), 1 x PS/2 Mouse/Keyboard Port, 2x HDMI Ports, 1x Optical SPDIF Out Port, 1x RJ45 LAN Port, Audio I/O Jacks
Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector
Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
