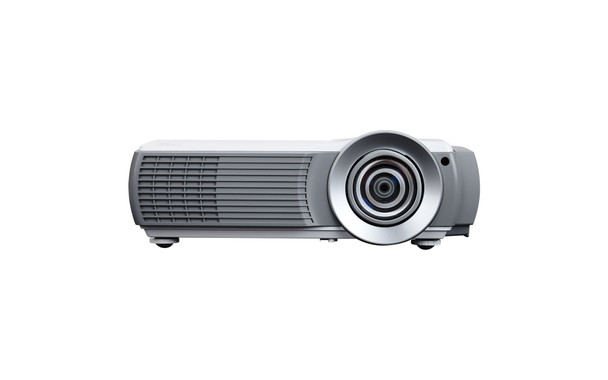

Viewsonic LS620X Desktop projector 3200ANSI lumens DLP XGA (1024x768) Grey data projector
(No reviews yet)
Write a Review
- Brand:
- ViewSonic
- Part Number #
- LS620X
- Availability:
- In Stock
$2,586.18
$2,155.15
- You save $431.03
Description
| Projector | |
|---|---|
| Number of colours | 1.073 billion colors |
| Projector native resolution | XGA (1024x768) |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 60 - 150" |
| Projection distance | 29.1 - 72.8" (0.74 - 1.85 m) |
| Contrast ratio (dynamic) | 100000:1 |
| Keystone correction, vertical | ± 40 |
| Projection technology | DLP |
| Projector brightness | 3200 ANSI lumens |
| Lamps | |
| Service life of lamp | 20000 h |
| Bulb power | 260 W |
| Service life of lamp (economic mode) | 25000 h |
| Lamps quantity | 1 lamp(s) |
| Lens system | |
| Throw ratio | 0.61:1 |
| Scanning frequency | |
| Vertical scan range | 48 - 120 Hz |
| Horizontal scan range | 15 - 102 kHz |
| Video | |
| Analog signal format system | NTSC,PAL,PAL 60,SECAM |
| 3D-ready | Yes |
| Supported video modes | 480i,480p,576i,576p,720p,1080i,1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1366 Ñ… 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Ports & interfaces | |
| Remote (IR) output | 2 |
| Mobile High-Definition Link (MHL) | Yes |
| MHL version | 2.0 |
| 12V trigger | Yes |
| HDMI connector type | Full-size |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| Microphone in | Yes |
| S-Video inputs quantity | 1 |
| RS-232 ports | 1 |
| HDMI version | 1.4 |
| DVI port | No |
| AC (power) in | Yes |
| Networking | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Technical details | |
| Colour of product | Grey |
| On Screen Display (OSD) | Yes |
| Ceiling mounting supported | Yes |
| Performance | |
| On Screen Display (OSD) | Yes |
| Vertical scan range | 48 - 120 Hz |
| Horizontal scan range | 15 - 102 kHz |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Design | |
| Product type | Desktop projector |
| Colour of product | Grey |
| Ceiling mounting supported | Yes |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 360 W |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Packaging data | |
| Package width | 19.3" (491 mm) |
| Package depth | 11" (280 mm) |
| Package height | 15.4" (391 mm) |
| Package weight | 16.3 lbs (7.4 kg) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | 0 - 59015.7" (0 - 1499 m) |
| Certificates | |
| RoHS compliance | Yes |
| Certification | EAC, TUV-S, BIS, FCC, CE, EMC, CB, CCC, REACH, SVHC, WEEE, ErP, NOM, cTUVus, PSB, RCM, CECP |
| Weight & dimensions | |
| Package width | 19.3" (491 mm) |
| Package depth | 11" (280 mm) |
| Package height | 15.4" (391 mm) |
| Weight | 12.1 lbs (5.5 kg) |
| Width | 16.3" (415 mm) |
| Depth | 5.75" (146 mm) |
| Height | 11.7" (298 mm) |
| Package weight | 16.3 lbs (7.4 kg) |
| Packaging content | |
| Cables included | AC |
