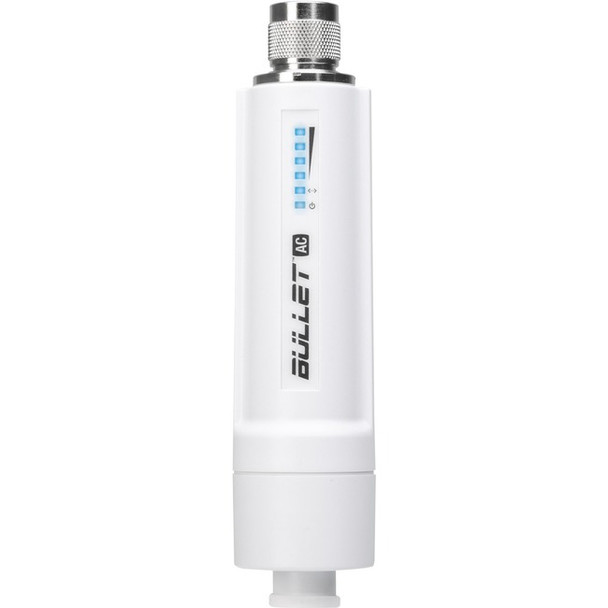

Ubiquiti Bullet B-DB-AC IEEE 802.11ac 460 Mbit/s Wireless Access Point - B-DB-AC-US

Specifications
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: B-DB-AC-US
Manufacturer Website Address: http://www.ubnt.com
Brand Name: Ubiquiti
Product Line: Bullet
Product Model: B-DB-AC
Product Name: B-DB-AC Wireless Access Point
Marketing Information: Ubiquiti Networks designed airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet ™AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

Zero-Variable Deployment

The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. There are no radio card / host board issues, no RF cable quality concerns, no mechanical stability concerns, and no enclosure mounting requirements. With the Bullet AC, operators can just plug in and go.

Software

airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful Wireless Features

• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manua
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security

Usability Enhancement

• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer

Advanced RF Analytics

airMAX ac devices feature a multi -radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry

Data from the spectrum analysis and RF performance monitoring is displayed on the Dashboard and airView Spectrum Analyzer.

Real-Time Reporting

airOS 8 displays the following RF information:

• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Signal, Noise, and Interference (SNI) diagrams
• Noise Floor diagrams
• Expected/Current Rate diagrams

Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:

• 2.40 GHz
• 5 GHz

Wireless Transmission Speed: 460 Mbit/s
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Physical Characteristics
Height: 7.5"
Diameter: 1.8"
Weight (Approximate): 4.09 oz
