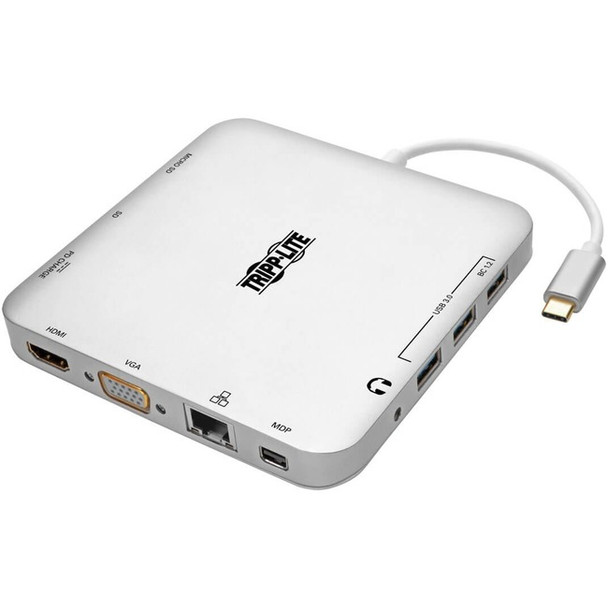

Tripp Lite USB C Docking Station w/ Hub mDP HDMI VGA GbE PD Charging 4K, USB-C, Type-C - U442-DOCK2-S

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: U442-DOCK2-S
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: U442-DOCK2-S
Product Name: U442-DOCK2-S Docking Station
Marketing Information:

USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation

The U442-DOCK2-S expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more-all at the same time.

Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals

With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

Transmits Crystal-Clear 4K Video and Digital Audio

To send digital audio and Ultra High Definition video to a 4K-ready HDMI or Mini DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or mDP cable (sold separately). The Mini DisplayPort and HDMI ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Only one display can be connected at a time. A DisplayPort or DVI display may also be connected using an mDP to DP or HDMI to DVI adapter (adapters sold separately).

Connects Keyboards, Thumb Drives and Other USB Peripherals

The USB-A hub ports accept up to three USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. A BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices.

Charges the Connected Laptop, Smartphone or Other Device

The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U442-DOCK2-S is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 60W-45W for the USB-C device and 15W dedicated to the U442-DOCK2-S and its USB-A hub ports.

Accesses a Wired Gigabit Ethernet Network

The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

Connects Audio Equipment

The USB-C hub's 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.

Allows External Memory Access

The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet.

Built-In USB-C Cable Connects in Either Direction

Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

Ready to Use Right Out of the Package

The plug-and-play USB-C dock requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.

Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook/Tablet PC/Desktop PC/Smartphone
Interfaces/Ports
Host Interface: USB Type C
Audio Line In: Yes
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 3
USB Type-C: Yes
USB Type-C Detail: USB C (Male)
Network (RJ-45): Yes
VGA: Yes
Mini DisplayPort: Yes
Microphone: Yes
HDMI: Yes
Thunderbolt: Yes
Power Description
Maximum Power Supply Wattage: 60 W
Physical Characteristics
Height: 0.6"
Width: 4.7"
Depth: 4.7"
Weight (Approximate): 8 oz
Miscellaneous
Compatibility:

Notebooks:

• Apple MacBook
• Google Chromebook

Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• REACH
