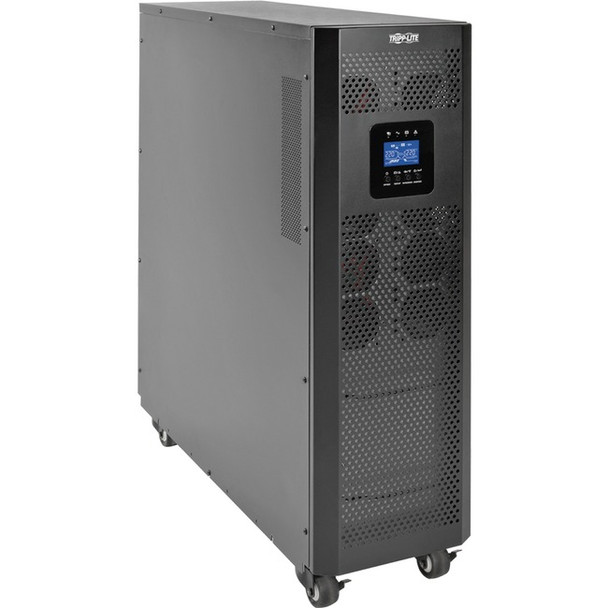

Tripp Lite SmartOnline SVT10KX 10kVA Tower UPS

Tripp Lite SmartOnline SVT10KX 10kVA Tower UPS - SVT10KX

(No reviews yet) Write a Review

Brand:

Tripp Lite

Part Number #

SVT10KX

UPC:

37332192455

Availability:

In Stock

$8,303.16 $6,919.30

- You save $1,383.86

Description
Read Before Ordering

Description

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: SVT10KX
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Series: SVTX
Product Model: SVT10KX
Product Name: SmartOnline SVT10KX 10kVA Tower UPS
Marketing Information: The SVT10KX SmartOnline® SVTX Series 3-Phase 380/400/415V 10kVA 9kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It's recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.

The SVT10KX's VFI design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.

IGBT inverter technology produces output power with less than 2% total harmonic distortion(THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

Managing the SVT10KX is simplified through the interactive front-panel LCD interface, which displays critical operating conditions and diagnostic data, such as load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Four LEDs indicate bypass, line, battery and fault modes. A serial port allows connection to Tripp Lite's free local shutdown agent. A built-in card slot supports WEBCARDLX or RELAYCARDSV for network interface and remote monitoring and control. The SVT10KX's reduced size and small footprint save valuable space.
Product Type: Dual Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacles: Hardwired
Power Description
Load Capacity: 10000 VA/9000 W
Input Voltage:

220 V AC
230 V AC
240 V AC
380 V AC
400 V AC
415 V AC

Output Voltage:

220 V AC
230 V AC
240 V AC
380 V AC
400 V AC
415 V AC

Management
Network Management: SNMP/HTTP Remote Monitoring
Battery Information
Backup/Run Time (Full Load): 3.80 Minute
Backup/Run Time (Half Load): 10.50 Minute
Physical Characteristics
Form Factor: Tower
Height: 33.9"
Width: 9.8"
Depth: 32"
Weight (Approximate): 260 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
