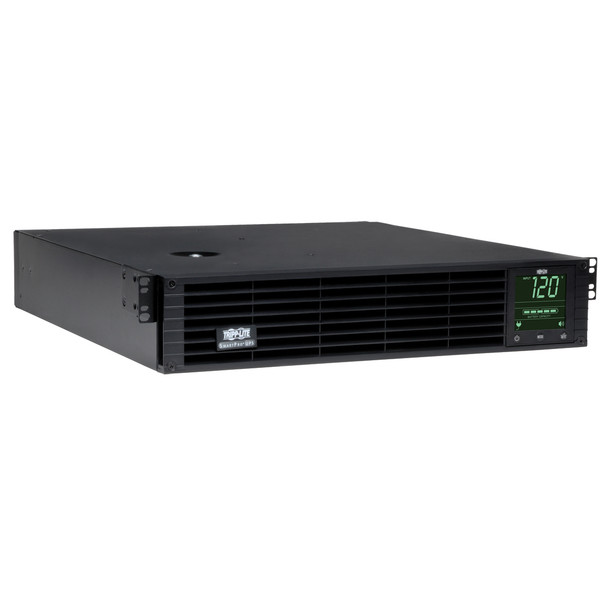

Tripp Lite SMART2200RMXLN Line-Interactive 2200VA 8AC outlet(s) Rackmount Black uninterruptible power
(No reviews yet)
Write a Review
- Brand:
- Tripp Lite
- Part Number #
- SMART2200RMXLN
- Availability:
- In Stock
$3,608.52
$3,007.11
- You save $601.41
Description
| Power | |
|---|---|
| Output power | 1920 W |
| Power supply input frequency | 60 |
| Surge energy rating | 570 J |
| Maximum current | 16 A |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.87 |
| Output power capacity | 2200 VA |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | NEMA 5-20P |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Cable length | 118.1" (3 m) |
| Technical details | |
| Form factor | Rackmount |
| Output connection type | 4 x 5-15R & 4 x 5-15/20R |
| Material | Steel |
| Battery | |
| Battery recharge time | 4.5 h |
| Typical backup time at half load | 12 min |
| Typical backup time at full load | 4.5 min |
| Replacement battery cartridge | RBC94-2U |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Colour | |
| Colour of product | Black |
| Cooling | |
| Fan | Yes |
| Cooling type | Active |
| Indication | |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount |
| Colour of product | Black |
| Material | Steel |
| Display | LCD |
| Performance | |
| UPS topology | Line-Interactive |
| LED indicators | Yes |
| Cooling type | Active |
| Audible alarm(s) | Yes |
| Display | |
| Display | LCD |
| Packaging data | |
| Package weight | 68.8 lbs (31.2 kg) |
| Management features | |
| Management platform | SNMP/WEB |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | UL1778 CSA NOM FCC |
| RoHS compliance | Yes |
| Weight & dimensions | |
| Package width | 21.7" (551 mm) |
| Package depth | 24.2" (615 mm) |
| Package height | 7.91" (201 mm) |
| Weight | 57.8 lbs (26.2 kg) |
| Width | 17.3" (440 mm) |
| Package weight | 68.8 lbs (31.2 kg) |
| Height | 3.43" (87 mm) |
| Depth | 19.4" (494 mm) |
| Other features | |
| Output connection type | 4 x 5-15R & 4 x 5-15/20R |
| Operating temperature (T-T) | 32 - 104 °F |
| Management platform | SNMP/WEB |
| Fan | Yes |
