Tripp Lite QSFP+ to Active Optical Cable - 40Gb, AOC, M/M, 30 m

Tripp Lite QSFP+ to Active Optical Cable - 40Gb, AOC, M/M, Aqua, 30 m (98.4 ft.) - N28F-30M-AQ

(No reviews yet) Write a Review

Brand:

Tripp Lite

Part Number #

N28F-30M-AQ

UPC:

37332225573

Availability:

In Stock

$915.21 $762.67

- You save $152.54

Description
Read Before Ordering

Description

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: N28F-30M-AQ
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: N28F-30M-AQ
Product Name: QSFP+ to QSFP+ Active Optical Cable - 40Gb, AOC, M/M, Aqua, 30 m (98.4 ft.)
Marketing Information:

QSFP+ Fiber Cable Connects Network Equipment at Speeds up to 40 Gbps

This 30-meter (98.4-foot) QSFP+ Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 10 Gbps SFP+ channels into one affordable high-density package. Each male connector contains four fiber optic transceivers, each capable of data transfer speeds up to 10 Gbps. Together, the N28F-30M-AQ provides an aggregated speed up to 40 Gbps, making it ideal for switches, servers, routers and other high-end networking equipment.

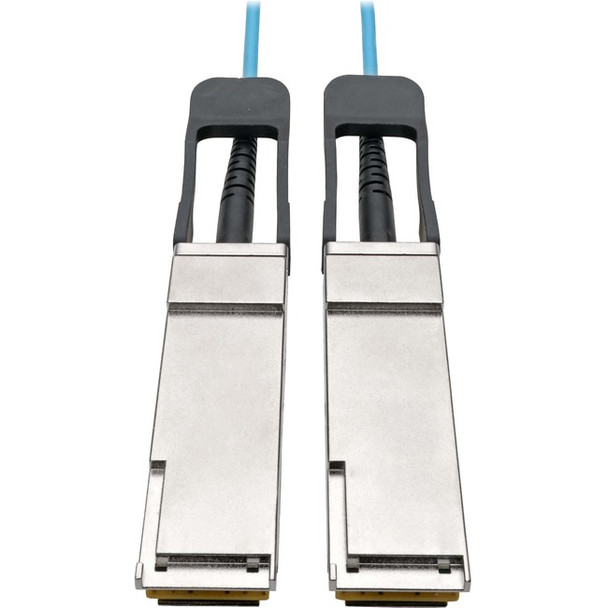

Push/Pull Tab Connectors Provide Quick, Easy Connections

The hot-pluggable QSFP+ connectors include ergonomic push/pull tabs, which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand.

Engineered and Optimized for Bandwidth-Intense Applications

This QSFP+ to QSFP+ cable integrates a 40 Gbps Ethernet-optimized 38-position "board as connector" design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The QSFP+ optical cable's 8-pair wire technology is optimized for 40GBASE-CR4, 6G SAS, Fibre Channel, PCIe, SONET and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling, walls and ducts.

Cisco-Compatible Cable Fully Compliant with the Latest Standards

This QSFP+ cable is fully compliant with the latest QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba standards and industry-standard SFF-8436 specifications. It is compatible with all QSFP and QSFP+ ports and Cisco's QSFP-H40G-AOC1M cable.

Product Type: Network Cable
Technical Information
Cable Type: Fiber Optic
Fiber Optic Mode: Multi-mode
Core/Cladding Diameter: 50/125 µm
Cable Length: 98.40 ft
Connector on First End: 1 x QSFP+ Male IEEE 802.3ba Network
Connector on Second End: 1 x QSFP+ Male IEEE 802.3ba Network
Features:

Active
EMI Protection

Device Supported:

Switch
Server
Router
Network Device

Data Transfer Rate: 40 Gbit/s
Physical Characteristics
Color: Aqua
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
