Tripp Lite PDU Monitored Horizontal 3.3/3.8KW 208/240V ATS L6-20R L6-20P 1U - PDUMNH20HVAT

(No reviews yet) Write a Review
Brand:
Tripp Lite
Part Number #
PDUMNH20HVAT
UPC:
37332187932
Availability:
In Stock
$1,554.32 $1,295.27
- You save $259.05
  • Tripp Lite PDUMNH20HVAT
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMNH20HVAT
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDUMNH20HVAT
Product Name: PDUMNH20HVAT 1-Outlet PDU

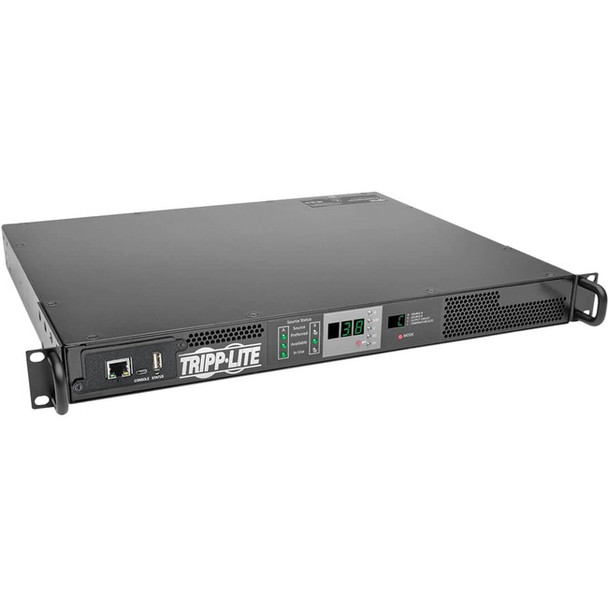

Marketing Information: The PDUMNH20HVAT 3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-20R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-20P plug.
Dual 10-foot input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. Automated alerts help prevent accidental overloads, power loss and downtime.
Product Type: PDU
Technical Information
Input Receptacles: 2 x NEMA L6-20P
Output Receptacles: 1 x NEMA L6-20R
Power Description
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Power Rating (Watt): 3800 W
Input Current: 20 A
Physical Characteristics
Mounting Orientation: Horizontal
Placement: Rack
Rack Height: 1U
Height: 1.7"
Width: 16.9"
Depth: 14"
Weight (Approximate): 15.37 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
