Tripp Lite 40GbE QSFP+ to 10GbE SFP+ Passive Copper Breakout Cable QSFP-4SFP10G-CU1M Compatible 1M - N281-01M-BK
- Brand:
- Tripp Lite
- Part Number #
- N281-01M-BK
- UPC:
- 37332193094
- Availability:
- In Stock
Description
Manufacturer: Tripp Lite
Manufacturer Part Number: N281-01M-BK
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: N281-01M-BK
Product Name: QN281-01M-BK QSFP+/SFP+ Network Cable
Marketing Information:

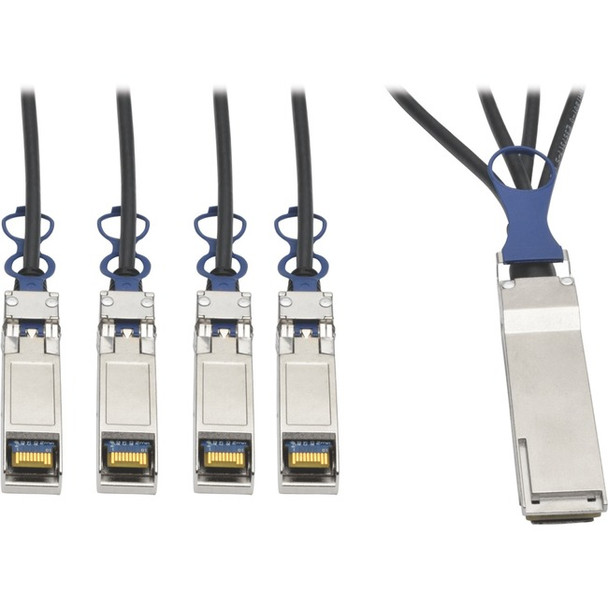

The N281-01M-BK 40 GbE QSFP+ to 10 GbE SFP+ Passive DAC Copper Breakout Cable provides next-generation performance by connecting your 40 GbE QSFP+ system to four 10 GbE SFP+ servers, switches and/or adapters. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This one-meter hot-pluggable cable features zinc die-cast QSFP+ and SFP+ male connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 40-Gigabit Ethernet (40GBASE-CR4), 10GBASE-CR4, 6G SAS, Fibre Channel and SONET.
Flexible 30 AWG conductors maintain a smooth high-frequency response (20 GHz). The N281-01M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. Compatible with SDR, DDR and QDR.
Product Type: Network Cable
Technical Information
Cable Type: QSFP+/SFP+
Cable Length: 3.30 ft
Connector on First End: 1 x QSFP+ Male Network
Connector on Second End: 4 x SFP+ Male Network
Features:
- Passive
- Crosstalk Protection
- EMI/RF Protection
- Flexible
Device Supported:
- Network Device
- Switch
- Server
American Wire Gauge: 30 AWG
Data Transfer Rate: 40 Gbit/s
Physical Characteristics
Color: Black
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- REACH
- RoHS
