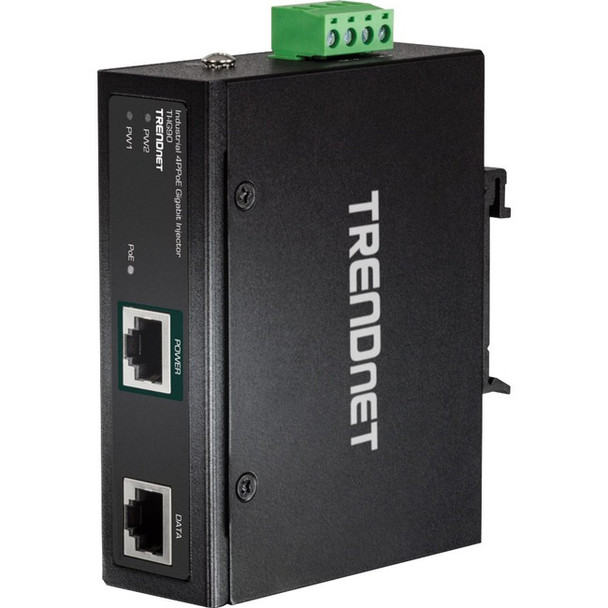

TRENDnet Hardened Industrial 90W Gigabit 4PPoE Injector - TI-IG90
- Brand:
- TRENDnet
- Part Number #
- TI-IG90
- UPC:
- 710931000000
- Condition:
- New
- Availability:
- In Stock. Normally Ships Same Day If Ordered Before 3pm Pacific Time
Description
Manufacturer: TRENDnet
Manufacturer Part Number: TI-IG90
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TI-IG90
Product Name: Hardened Industrial 90W Gigabit 4PPoE Injector
Marketing Information:
TRENDnet's TI-IG90 is a reliable IP30 rated Industrial Gigabit 4PPoE Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or 4PPoE (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.
4-Pair PoE (4PPoE)
Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or 4PPoE (up to 90W) device
Easy Installation
No configuration needed, simply connect a PoE network device to the industrial PoE injector
Gigabit Ports
1 x Gigabit port and 1 x Gigabit 4PPoE port
PoE Distance
Provides a 4-Pair PoE network connection up to 100m (328 ft.) away from the industrial PoE injector
LED Indicators
LED indicators on the industrial PoE injector confirm PoE connectivity
DIN-Rail Mount
IP30 rated metal enclosure, includes DIN-rail mount and wall mount brackets
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, model: TI-S12048)
Alarm Relay
Alarm relay output triggered by power failure of primary and / or redundant power
Wide Temperature Range
A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in industrial environments with extreme hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Industrial PoE injector features grounding point to protect equipment from external electrical surges
Product Type: PoE Injector
Technical Information
Protection Type: Overload Protection
Power Description
Maximum Output Power: 90 W
Interfaces/Ports
Input Ports: 1 Gigabit Ethernet
Output Ports: 1 Gigabit 4PPoE
Physical Characteristics
Form Factor: External
Mount Type: DIN Rail/Wall Mountable
Height: 1.3"
Width: 3.2"
Length: 4.1"
Weight (Approximate): 5.43 oz
