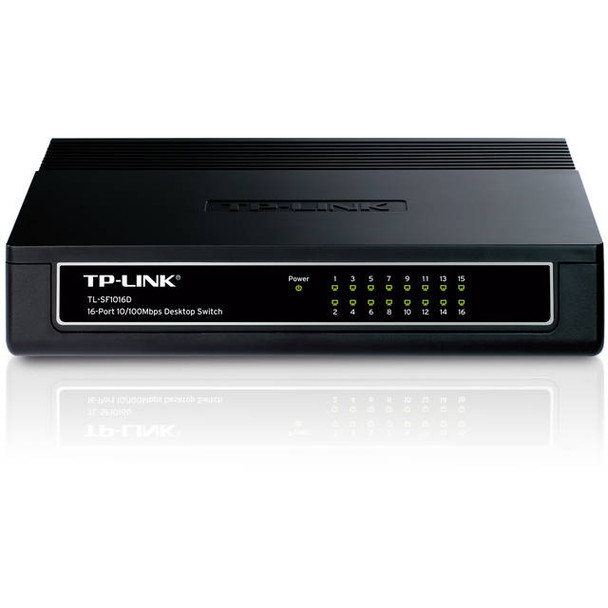

TP-Link TL-SF1016D 16-Port Unmanaged 10/100Mbps Desktop Switch
(No reviews yet)
Write a Review
- Brand:
- TP-Link
- Part Number #
- TL-SF1016D
- Availability:
- In Stock
$225.00
$188.00
- You save $37.00
Description
Specifications
- Mfr Part Number: TL-SF1016D
- Features:
- Innovative energy-efficient technology saves power up to 70%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 3.2Gbps Switching Capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
- Fanless design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
- Hardware:
- Standards: IEEE802.3, 802.3u, 802.3x
- Protocols: CSMA/CD
- Interface: 16x 10/100Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
- Mac Address Table: 1 K
- External Power Supply: 100~240VAC, 50/60Hz
- Fan Quantity: Fanless
- LEDs: Power, 1~16
- Dimensions (Wx DxH): 7.9 x 5.6 x 1.6 inch / 200.0 x 142.0 x 40.0 mm
- Software:
- Transfer Method: Store and Forward
- Advanced Functions: Green Technology, saving power up to70%; 802.3X Flow Control, Back Pressure; Auto-Uplink Every Port
- Switching:
- Half and Full Duplex
- MAC Address Learning
- 3.2Gbps Backplane Bandwidth
- Forwarding Rate:
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port
- Data Rate:
- 10/100Mbps at Half Duplex
- 20/200Mbps at Full Duplex
- Others:
- Certifications: CE, FCC, RoHS
- Package Contents: 16-Port 10/10Mbps Desktop Switch TL-SF1016D; Power Adapter; User Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
- Environment:
- Operating Temperature: 0oC~40oC (32oF~104oF)
- Storage Temperature: -40oC~70oC (-40oF~158oF)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
