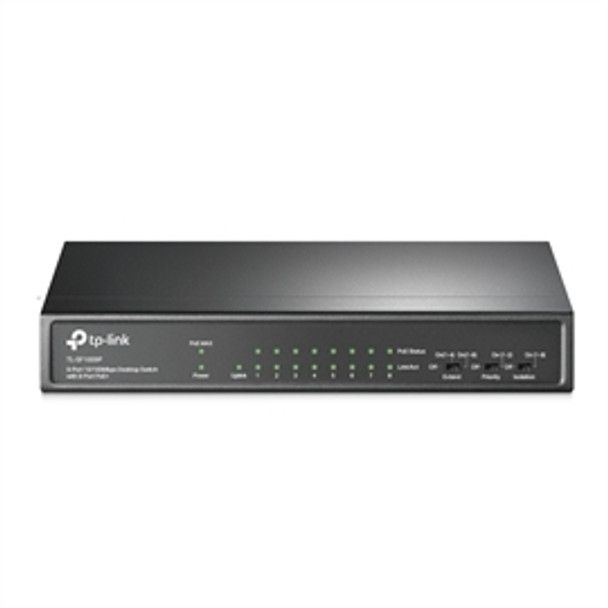

TP-Link Switch TL-SF1009P 9-Port Unmanaged Switch with 8 PoE+ Ports

•9× 10/100 Mbps RJ45 ports

•8× PoE+ ports transfer data and power on individual cables

•Works with IEEE 802.3af/at compliant PDs

•Supports PoE Power up to 30 W for each PoE port

•Supports PoE Power up to 65 W for 8 PoE ports

•Up to 250 m data and power transmitting range under Extend Mode

•Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

•Isolation Mode allows one-click client traffic separation for higher security and performance

•Plug and play with no configuration required

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. HARDWARE FEATURES
Interface
9 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate
1.3392 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8
Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1.8 Gbps
Max Power Consumption
3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 1-2)
Isolation Mode Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SF1009P
Power Adapter
Installation Guide
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
12 x 9 x 3
Weight
3.00 LB
Warranty Information
Limited Lifetime
