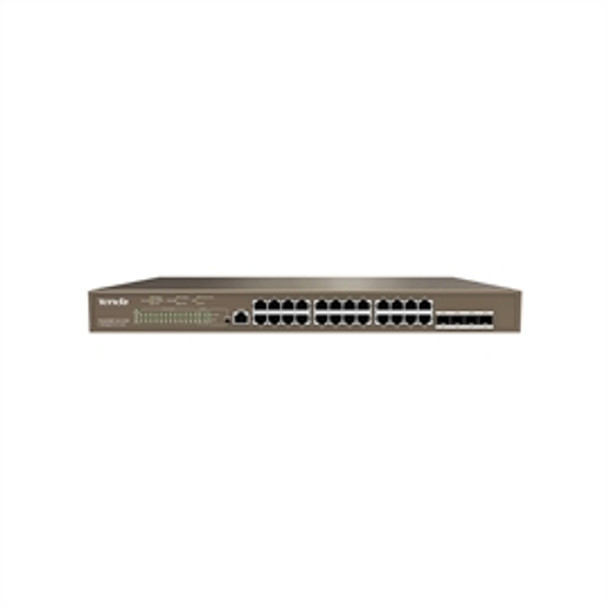

Tenda Switch TEG5328P-24-410W L3 Managed PoE Switch 24 10/100/1000 Mbps Base-T ports
(No reviews yet)
Write a Review
- Brand:
- Tenda Technology
- Part Number #
- AS251950
$322.85
Description
Layer-3 Routing Engine，High-Efficiency Fast Forwarding
Supports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!
370W Smart PoE Power Supply, 2 Times Load Capacity
Using a new 410W built-in PoE power, the number of AF / AT full-supply loads is twice than the ordinary low-power PoE switches!At the same time, the built-in PSE chip with intelligent power management function can monitor the temperature of the chip and customize the PoE power supply based on the time period. The device will automatically turn on / off the PoE function during working hours and idle time to minimize energy consumption and extend the service life of the device.
Flexible QoS, Precise Traffic Control
The TEG5328P-24-410W supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth，in order to better meet the current transmission needs.
Supports Layer 2 And Layer 3 ACL，For More Secure Access
Support strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of enterprise medical and other units. Hardware
Network standards
IEEE802.3 / IEEE802.3u / IEEE802.3ab / IEEE802.3z / IEEE802.3x / IEEE802.3af/at / IEEE802.1p / IEEE802.1q / IEEE802.1w / IEEE802.1d / IEEE802.1s
LED indicators
1 x Link/Act or PoE LED indicator
1 x Link/1 x Link/Act mode converting LED indicator
1 x PoE mode converting LED indicator
1 x PoE Max LED indicator
1 x Power LED indicator
1 x SYS LED indicator
Interfaces
24 x 10/100/1000 Base-T Ethernet ports
4 x 1000 Base-X SFP ports
1 x Console port
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
2
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: +/- 10kV
Contact discharge: +/- 8kV
Forwarding mode
Store-and-forward
Switch capacity
56Gbps
Packet forwarding rate
41.70Mpps
Packet forwarding rate
41.70Mpps
MAC address table
16K
Jombo frame
10K
PoE power supply
Support
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 370W
Input voltage
100-240V AC 50/60Hz
Power consumption
Full load: less than 432W
Empty load: less than 23W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Energy Efficient
Support
Environment
Operating temperature: 0oC - 45oC
Storage temperature: -40oC - 70oC
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certificates
FCC / CE / RoHS
View AllClose
Supports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!
370W Smart PoE Power Supply, 2 Times Load Capacity
Using a new 410W built-in PoE power, the number of AF / AT full-supply loads is twice than the ordinary low-power PoE switches!At the same time, the built-in PSE chip with intelligent power management function can monitor the temperature of the chip and customize the PoE power supply based on the time period. The device will automatically turn on / off the PoE function during working hours and idle time to minimize energy consumption and extend the service life of the device.
Flexible QoS, Precise Traffic Control
The TEG5328P-24-410W supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth，in order to better meet the current transmission needs.
Supports Layer 2 And Layer 3 ACL，For More Secure Access
Support strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of enterprise medical and other units. Hardware
Network standards
IEEE802.3 / IEEE802.3u / IEEE802.3ab / IEEE802.3z / IEEE802.3x / IEEE802.3af/at / IEEE802.1p / IEEE802.1q / IEEE802.1w / IEEE802.1d / IEEE802.1s
LED indicators
1 x Link/Act or PoE LED indicator
1 x Link/1 x Link/Act mode converting LED indicator
1 x PoE mode converting LED indicator
1 x PoE Max LED indicator
1 x Power LED indicator
1 x SYS LED indicator
Interfaces
24 x 10/100/1000 Base-T Ethernet ports
4 x 1000 Base-X SFP ports
1 x Console port
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
2
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: +/- 10kV
Contact discharge: +/- 8kV
Forwarding mode
Store-and-forward
Switch capacity
56Gbps
Packet forwarding rate
41.70Mpps
Packet forwarding rate
41.70Mpps
MAC address table
16K
Jombo frame
10K
PoE power supply
Support
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 370W
Input voltage
100-240V AC 50/60Hz
Power consumption
Full load: less than 432W
Empty load: less than 23W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Energy Efficient
Support
Environment
Operating temperature: 0oC - 45oC
Storage temperature: -40oC - 70oC
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certificates
FCC / CE / RoHS
