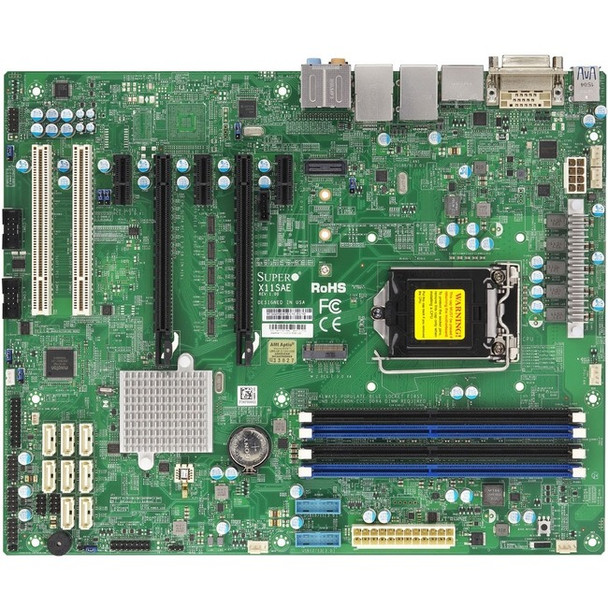

Supermicro X11SAE Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - MBD-X11SAE-O

Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X11SAE-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X11SAE
Product Name: X11SAE Workstation Motherboard
Marketing Information: Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)

Supermicro's single processor Socket H4 designs feature the Intel® C236 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
Product Type: Workstation Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:

• Xeon
• Core i7
• Core i5
• Core i3

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory: 64 GB
Memory Speed Supported:

• 2.13 GHz
• 1.87 GHz
• 1.60 GHz

Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 2
Number of USB 3.1 Ports: 2
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Onboard Interfaces
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 10
Number of Onboard USB 3.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Compatibility: Supermicro Chassis:

Mid/Mini Tower Chassis:

• SC732D4-903B
• SC732D4-865B

4U / Tower Chassis:

• SC743TQ-1200B-SQ

SuperServer(s) Model(s):

• SYS-5039A-IL

Environmentally Friendly: Yes
Environmental Certification: RoHS
