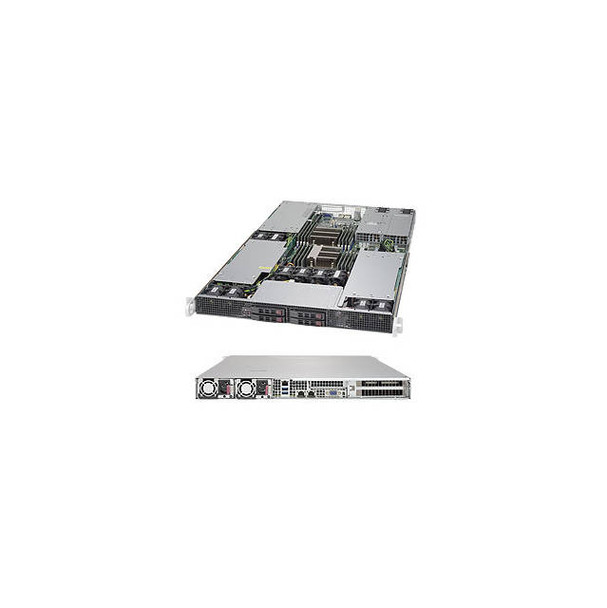

Supermicro SuperServer SYS-1028GR-TRT Dual LGA2011 1000W/1600W 1U Rackmount Server Barebone System (Black)

(No reviews yet) Write a Review
Brand:
SuperMicro
Part Number #
SYS-1028GR-TRT
Availability:
In Stock
$4,737.47 $3,947.89
- You save $789.58
  • Supermicro SuperServer SYS-1028GR-TRT Dual LGA2011 1000W/1600W 1U Rackmount Server Barebone System (Black)
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications

  • Mfr Part Number: SYS-1028GR-TRT BLACK
  • Motherboard: Super X10DRG-HT
  • Processor: Dual LGA2011
    • Support Intel Xeon E5-2600 v3 Family Processors
    • Support up to 18 Cores
    • Cache up to 45MB
    • QPI up to 9.6 GT/s
    • Support up to 145W TDP
  • Chipset: Intel C612 Express
  • Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
  • Slots: 4x PCI-Express 3.0 x16 Slots (3x GPU/Xeon Phi cards optional), 1x PCI-Express 3.0 x16 Slot (Low-profile, runs at x8)
  • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Video: Aspeed AST2400 BMC Graphic
  • LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller
  • Drive Bays: 4x 2.5" Hot-swap Drive Bays
  • Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 2x USB 2.0 Ports (2 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: 1U Rackmount
  • Power Supply: 1000W/1600W 80 PLUS Platinum Level 1U Redundant Power Supply
  • System Cooling: 10x Counter-rotating Fans w/ Optimal Fan Speed Control
  • Front Panel:
    • Buttons: Power On/Off, System Reset
    • LEDs: Power, HDD Activity, 2x Network Activity, System Overheat/ Fan fail/ UID
  • Color: Black
  • Dimensions (WxDxH): 17.2 x 30.6 x 1.7 inch / 437.0 x 777.0 x 43.0 mm
  • Gross Weight: 48.0 lbs / 21.8 kg
  • RoHS Compliant
