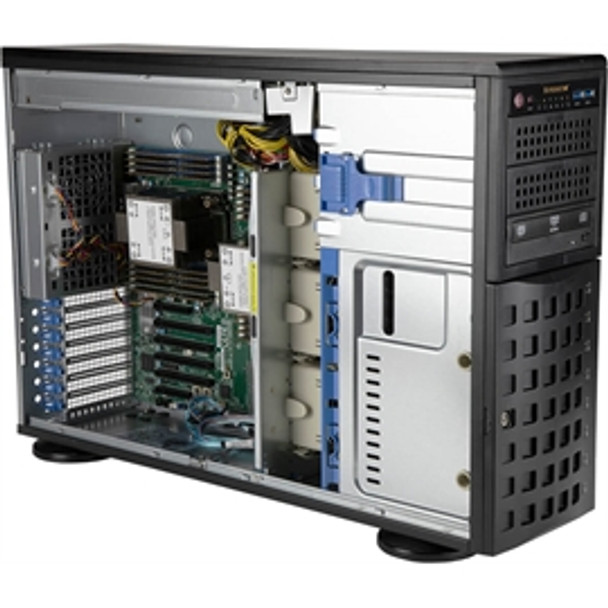

Supermicro Server SYS-740P-TR 4U Xeon Socket P+ LGA4189 4TB DDR4 8x3.5"HS Brown Box

Key Applications
- Enterprise Server
- Application and data serving
- Model analysis
- Compute Intensive Applications
- Office environment
Key Features
Dual sockets P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
CPU TDP supports Up to 270W TDP
3 UPI up to 11.2 GT/s
Intel C621A Chipset
Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
- Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only)
4 PCI-E 4.0 x16 Full Height (FH)
2 PCI-E 4.0 x8 Full Height (FH)
Dual Gigabit LAN with Intel i350 Ethernet Controller Motherboard
Super X12DPi-N6
Processor
CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors
Support CPU TDP 270W
System Memory
Memory
Memory Capacity: 16 DIMM slots
Up to 4TB: PMem and DRAM
Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4
Intel Optane persistent memory 200 series
On-Board Devices
Chipset
Intel C621A
Network Connectivity
2x 1GbE port(s)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 decicated IPMI LAN port
USB
2 USB 2.0 port(s) (2 front)
4 USB 3.0 port(s) (4 rear)
Video
1 VGA port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
Management
Software
Supermicro Out of Band (OOB) License (included in the unit)
IPMI2.0
Redfish API
SSM
Intel Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Power Configurations
ACPI/APM Power Management
PC Health Monitoring
CPU
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
Tower/4U
Model
CSE-745BTS-R1K23BP
Available Color
Black
Front Panel
Buttons
Power On/Off
System Reset
LEDs
HDD activity
Network activity
Power status
System information (overheat/UID)
Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x8 Full-height
Slot 2: PCI-E 4.0 x16 Full-height
Slot 3: PCI-E 4.0 x16 Full-height
Slot 4: PCI-E 4.0 x16 Full-height
Slot 5: PCI-E 4.0 x16 Full-height
Slot 6: PCI-E 4.0 x8 Full-height
Drive Bays / Storage
Hot-swap
8x 3.5" hot-swap SATA3 drive bays (8x 3.5" hot-swap SATA drive bays can be converted to 8x SAS drive bays by adding 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-01)
M.2
1 M.2 NVMe
Peripheral Bays
1x 5.25" DVD drive bays (optional)
System Cooling
Fans
2 rear Fan(s)
3 middle Fan(s)
Power Supply
1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
Dimension (W x H x L)
76 x 40 x 336 mm
AC Input
1200W: 100-127Vac / 12A-15A / 50-60Hz
1200W: 200-240Vac / 7A-8.5A / 50-60Hz
DC Output
200-240Vdc CCC only/ 7A-8.5A / 50-60Hz
Output Type
Gold Finger (19 pair connector)
Certification
Titanium Level
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC - 35^oC (50^oF - 95^oF)
Non-operating Temperature:
-40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity:
8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
5% to 95% (Non-Condensing)
Item Dimension (L"xW"xH")
32 x 14 x 25

Weight
81 lbs

Warranty Information
1 Year
