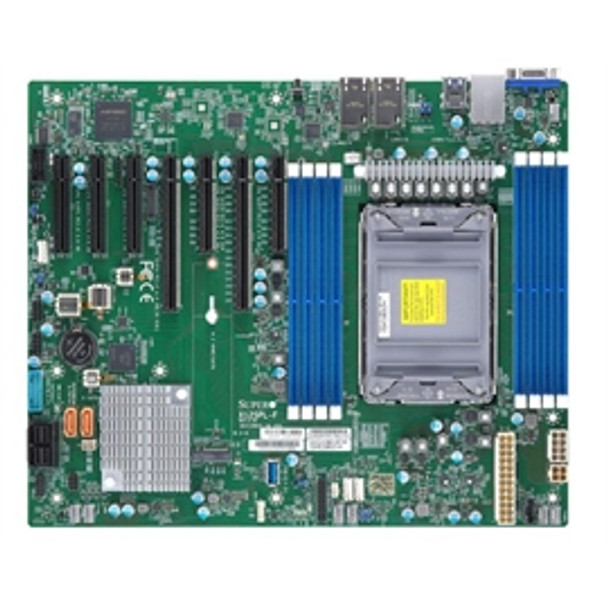

Supermicro Motherboard MBD-X12SPL-F-O X12SPL-LN4F C621 A LGA4189 SKT-P+ 8xDDR4 ATX

Key Features
3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel C621A
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
2 PCI-E 4.0 x8,
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x8 (in x16 slot)
3 PCI-E 3.0 x8
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Dual LAN with Intel i210 Gigabit Ethernet Controller
Intel C621A controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10 Physical Stats
Form Factor
ATX
Dimensions
12.1" x 10" (30.73cm x 25.4cm)
Processor/Cache
CPU
3rd Gen Intel Xeon Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache
Up to 40 cores
System Memory
Memory Capacity
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
Memory Type
3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C621A
SATA
Intel C621A controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller
Graphics
ASPEED AST2600 BMC
Input / Output
SATA
10 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 header)
TPM
TPM Header
Expansion Slots
PCI-E
2 PCI-E 4.0 x8,
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x8 (in x16 slot)3 PCI-E 3.0 x8
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7
Management
Software
Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Power Configurations
ACPI Power Management
CPU thermal trip support for processor protection
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT
Temperature
PECI, CPU thermal trip support
LED
CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features
ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, RoT, UID, WOL
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non-Operating Relative Humidity Range
10% - 95% (non-condensing)
Item Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
1 year
