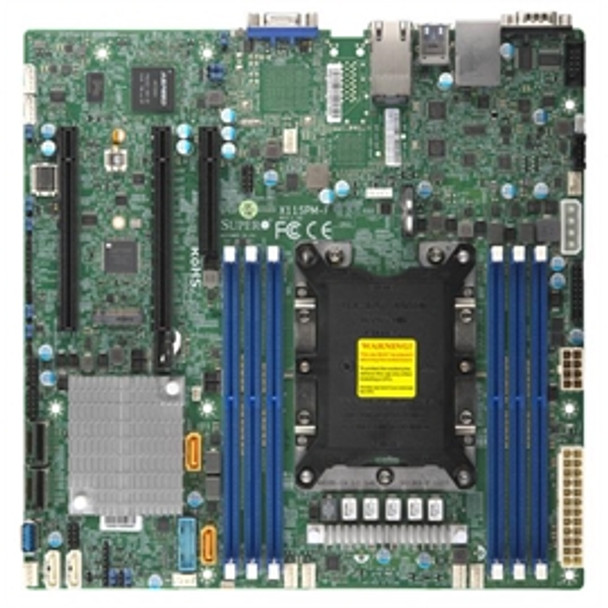

Supermicro Motherboard MBD-X11SPM-F-O Xeon Single Socket S3647 C621 Max.768GB PCI Express mATX
(No reviews yet)
Write a Review
- Brand:
- SuperMicro
- Part Number #
- AS203953
- UPC:
- 672042282593
$513.07
Description
1.Intel Xeon Processor Scalable Family, Single Socket P (LGA 3647) supported, CPU TDP support 165W
2.Intel C621 Chipset
3.Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz 6x DIMM slots
4.Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8)
5.2 GbE LAN ports
6.12 SATA3 (6Gbps) via C621
7.Supports 12V DC power input
8.4-pin Internal power connector
9.5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
10.I/O: 1 VGA, 2 COM, TPM header Form Factor
microATX
CPU
Intel Xeon Processor Scalable Family.
Single Socket P (LGA 3647) supported, CPU TDP support 165W
Cores / Cache
Up to 28 cores
Memory Capacity
6x 288-pin DDR4 DIMM slots
Up to 768GB ECC 3DS LRDIMM
Up to 384GB ECC LRDIMM
Up to 192GB ECC RDIMM
Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Chipset
Intel C621
SATA
Intel C621 controller for 12 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 1GbE with Marvell 88E1512
Graphics
Aspeed AST2500 BMC
USB
6 USB 2.0 ports (2 rear + 4 via header(s)),
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output
1 VGA port(s)
Serial Port / Header
2 COM Ports (1 rear, 1 header(s))
TPM
TPM Header
PCI-E
2 PCI-E 3.0 x16,
1 PCI-E 3.0 x8
M.2
Interface: PCIe 3.0 x4
Form Factor: 2242, 2280
BIOS Type
AMI UEFI
View AllClose
2.Intel C621 Chipset
3.Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz 6x DIMM slots
4.Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8)
5.2 GbE LAN ports
6.12 SATA3 (6Gbps) via C621
7.Supports 12V DC power input
8.4-pin Internal power connector
9.5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
10.I/O: 1 VGA, 2 COM, TPM header Form Factor
microATX
CPU
Intel Xeon Processor Scalable Family.
Single Socket P (LGA 3647) supported, CPU TDP support 165W
Cores / Cache
Up to 28 cores
Memory Capacity
6x 288-pin DDR4 DIMM slots
Up to 768GB ECC 3DS LRDIMM
Up to 384GB ECC LRDIMM
Up to 192GB ECC RDIMM
Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Chipset
Intel C621
SATA
Intel C621 controller for 12 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 1GbE with Marvell 88E1512
Graphics
Aspeed AST2500 BMC
USB
6 USB 2.0 ports (2 rear + 4 via header(s)),
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output
1 VGA port(s)
Serial Port / Header
2 COM Ports (1 rear, 1 header(s))
TPM
TPM Header
PCI-E
2 PCI-E 3.0 x16,
1 PCI-E 3.0 x8
M.2
Interface: PCIe 3.0 x4
Form Factor: 2242, 2280
BIOS Type
AMI UEFI
