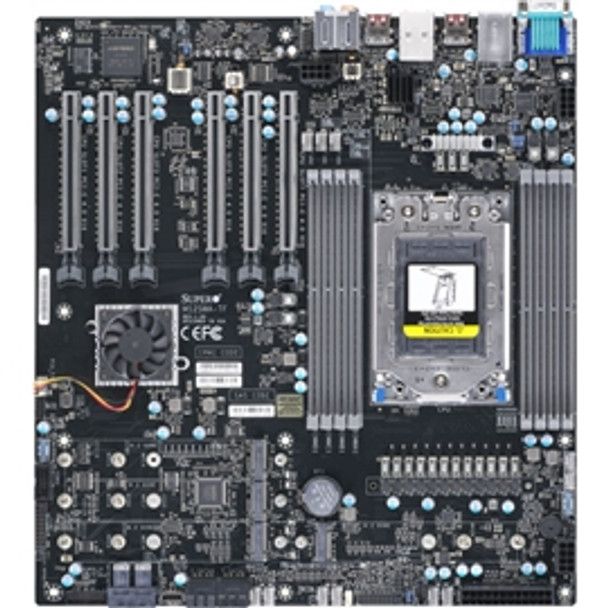

Supermicro Motherboard MBD-M12SWA-TF-O AMD WRX80 sWRX8/SP3 256GB DDR4 PCI Express E-ATX

Key Features

1.AMD Ryzen™ Threadripper™ PRO 3000WX Series Processor, up to 64 Cores

2.Up to 256GB Unbuffered non-ECC UDIMM/

2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMS.

3.6 PCI-E 4.0 x16 slots

M.2 Interface: 4 PCI-E 4.0 x4 (Software RAID 0,1,5,10)

M.2 Form Factor: 2280, 22110

M.2 Key: M-key

U.2 Interface: 2 U.2 sockets (Software RAID 0,1)

4.4 SATA 3.0 6Gbps (Software Raid 0,1,5 & 10)

5.1x 10GBase-T LAN port,

1 GbE LAN port (shared with IPMI)

6.ASPEED AST2600 BMC graphics

7.1 USB 3.2 Gen2x2 port (Type C, 20Gbps),

5 USB 3.2 Gen2 ports

  (4 type A + 1 front type C header),

5 USB 3.2 Gen1 ports

  (3 type A + 2 via header),

2 USB 2.0 ports via header

8.1 COM port (rear),

TPM 2.0 header,

7.1 Channel HD Audio

9.10 fan header, 4-pin type fan header,

112V-power header for liquid cooling Form Factor
E-ATX
Processor/Cache
CPU
Single AMD Ryzen^TM Threadripper^TM PRO 3000WX Series Processor
Socket sWRX8/SP3
Supports CPU TDP up to 280W
Cores
Up to 64 Cores
System Memory
Memory Capacity
8 DIMM slots
Supports up to 256GB Unbuffered non-ECC UDIMM or 2TB Registered ECC DDR 3200MHz SDRAM
8-channel memory bus
Memory Type
DDR4 3200 MHz Unbuffered non-ECC UDIMM/Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
AMD WRX80
SATA
AMD WRX80 controller for 4 SATA3 (6 Gbps)ports, Software RAID 0,1,5,10
Network Controllers
10G LAN: Single LAN via Marvell AQC113C 10Gb controller
1GbE LAN: Single LAN via via Intel i210AT controller (shared with IPMI)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2600 BMC
Audio
ALC4050H + ALC1220 7.1 Channel HD Audio
Graphics
ASPEED AST2600 BMC
VGA connector is dedicated for IPMI
Input / Output
SATA
4 SATA3 (6 Gbps) ports
LAN
1 RJ45 10GBase-T LAN port
1 RJ45 GbE LAN port (shared with IPMI)
USB
1 USB 3.2 Gen2x2 port (Type C, 20Gbps)
5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps)
5 USB 3.2 Gen1 ports (3 Type A, 1 via header)
2 USB 2.0 via header
VGA
1 VGA port (dedicated for IPMI)
Others
1 COM port (rear)
1 TPM 2.0 header
Expansion Slots
PCI-Express
6 PCI-E 4.0 x16 slots
