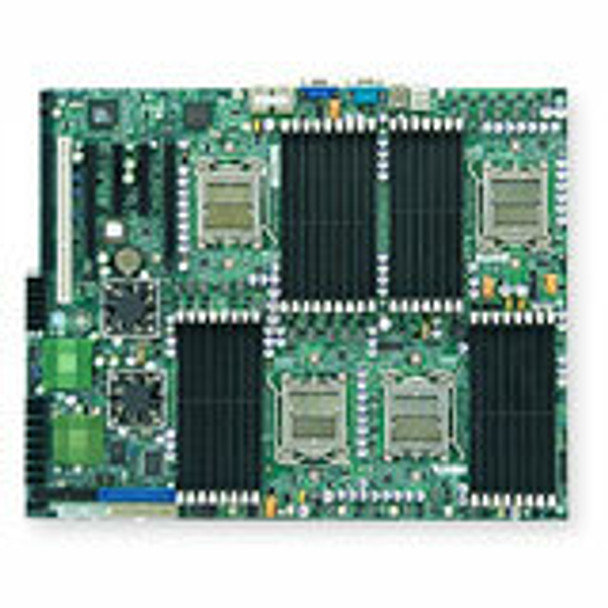

Supermicro H8QM3-2 Server Motherboard - NVIDIA Chipset - Socket F (1207) - MBD-H8QM3-2-O

Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-H8QM3-2-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: H8QM3-2
Product Name: H8QM3-2 Server Motherboard
Marketing Information:

The H8QM3-2 Server Board is based on the nVidia MCP55 Pro and IO55 chipset. The MCP55 Pro functions as Media and Communications Processor (MCP) and the IO55 as a PCI-E Tunnel. An NEC uPD720404 chip is also included as a bridge for the GB LAN ports and the PCI-X slot. Note that the controllers for the system memory are integrated directly into the AMD CPUs.

Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: NVIDIA
Total Processor Supported: 4
Processor Socket: Socket F (1207)
Processor Supported:

• Opteron Quad-Core
• Opteron Dual-Core

Memory
Number of Memory Slots: 32
Maximum Memory: 128 GB
Memory Speed Supported:

• 667 MHz
• 533 MHz
• 400 MHz

Memory Standard:

• DDR2-667/PC2-5300
• DDR2-533/PC2-4200
• DDR2-400/PC2-3200

Memory Technology: DDR2 SDRAM
I/O Controller
Controller Type:

• Floppy Controller
• Serial Attached SCSI (SAS)
• Serial ATA/300
• Ultra ATA/133 (ATA-7)

RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 1+0
• 0+1
• JBOD

Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: ES1000
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 1
Physical Characteristics
Form Factor: Extended ATX
Width: 16.4"
Depth: 13"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
