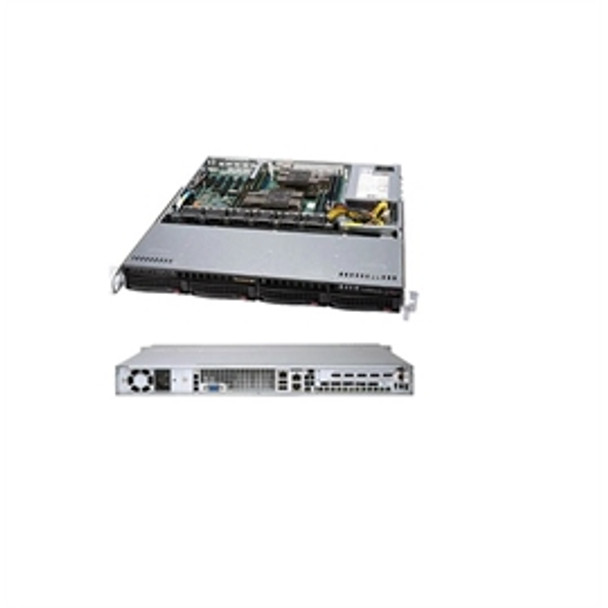

Supermicro Case CSE-813MF2TQC-505CB 1U 4x3.5" Hot swap SAS/SATA 500W ATX Brown Box
(No reviews yet)
Write a Review
- Brand:
- SuperMicro
- Part Number #
- AS239869
$444.77
Description
Key Features
1.1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
2.4 x 3.5" hot-swap SAS/SATA drive bay with SES2
3.1U 4-Port 12Gbps Backplane Support 4x3.5
4.1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
5.1 full height expansion slot(s)
6.4 x 40x28mm PWM fan(s)
7.Optional 2 x 40x28mm PWM fan(s) Form Factor
1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
Processor Support
Dual, single Intel / AMD processors
Available Color
Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA drive bay with SES2
Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5
Peripheral Drives
Optional 1 x Slim DVD-ROM Drive
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED
Systems Cooling
Fans
4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range
5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
Power Efficiency
93%
Total Output Power and Input
500W with Input 100 - 240Vac
View AllClose
1.1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
2.4 x 3.5" hot-swap SAS/SATA drive bay with SES2
3.1U 4-Port 12Gbps Backplane Support 4x3.5
4.1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
5.1 full height expansion slot(s)
6.4 x 40x28mm PWM fan(s)
7.Optional 2 x 40x28mm PWM fan(s) Form Factor
1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
Processor Support
Dual, single Intel / AMD processors
Available Color
Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA drive bay with SES2
Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5
Peripheral Drives
Optional 1 x Slim DVD-ROM Drive
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED
Systems Cooling
Fans
4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range
5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
Power Efficiency
93%
Total Output Power and Input
500W with Input 100 - 240Vac
