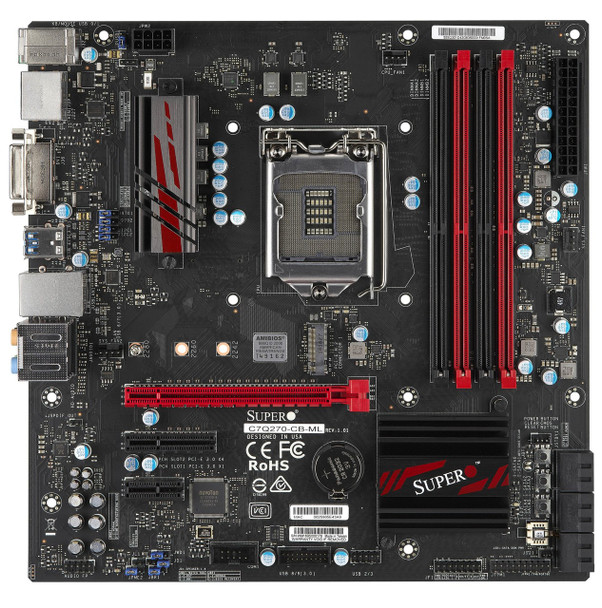

Supermicro C7Q270-CB-ML Intel Q270 LGA 1151 (Socket H4) microATX motherboard

(No reviews yet) Write a Review

Brand:

SuperMicro

Part Number #

MBD-C7Q270-CB-ML-O

Condition:

Refurbished

Availability:

IN STOCK - COMES WITH 30 DAYS WARRANTY

$630.92 $525.77

- You save $105.15

Description
Read Before Ordering

Description

Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory voltage	1.2 V
Non-ECC	Yes
Supported memory clock speeds	2400 MHz
Supported UDIMM clock speeds	2133,2400 MHz
Supported memory module capacities	4GB,8GB,16GB
Maximum internal memory	64 GB
Unbuffered memory	Yes
Processor
Processor manufacturer	Intel
Intel Core i3/i5/i7 series	i3-6xxx,i3-7xxx,i5-6xxx,i5-7xxx,i7-6xxx,i7-7xxx
Compatible processor series	IntelÂ® CeleronÂ®, IntelÂ® PentiumÂ®
Maximum number of SMP processors	1
Processor socket	LGA 1151 (Socket H4)
Internal I/O
Number of M.2 (M) slots	1
Supported storage drive interfaces	M.2, Serial ATA III
USB 2.0 connectors	1
USB 3.0 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	6
Number of COM connectors	1
Number of chassis fan connectors	3
ATX Power connector (24-pin)	Yes
Back panel I/O ports
USB 3.0 (3.1 Gen 1) Type-A ports quantity	4
DisplayPort version	1.2
USB 2.0 ports quantity	2
HDMI version	1.4b
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	1
DisplayPorts quantity	1
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Q270
Trusted Platform Module (TPM)	Yes
Supported processor sockets	LGA 1151 (Socket H4)
PC health monitoring	Fan, LED, Temperature, Voltage
HDMI version	1.4b
Motherboard form factor	microATX
Component for	PC
Thermal Design Power (TDP)	65 W
Audio
Audio system	RealTek ALC 1150 High Definition Audio
Audio output channels	7.1 channels
Networking
Ethernet LAN	Yes
LAN controller	Intel I219-V
Ethernet interface type	Gigabit Ethernet
Performance
Watch Dog function	Yes
Motherboard chipset family	Intel
Motherboard chipset	Intel Q270
RAID levels	0, 1, 5, 10
Trusted Platform Module (TPM)	Yes
Supported processor sockets	LGA 1151 (Socket H4)
PC health monitoring	Fan, LED, Temperature, Voltage
Audio system	RealTek ALC 1150 High Definition Audio
Audio output channels	7.1 channels
Motherboard form factor	microATX
Component for	PC
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x4 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
BIOS
BIOS type	AMI
BIOS memory size	128 MB
ACPI version	5.0
System management BIOS (SMBIOS) version	2.7
Storage controllers
RAID levels	0, 1, 5, 10
Certificates
RoHS compliance	Yes
Software
Bundled software	SuperDoctor 5
Weight & dimensions
Width	9.6" (243.8 mm)
Depth	9.6" (243.8 mm)
Packaging content
Bundled software	SuperDoctor 5
