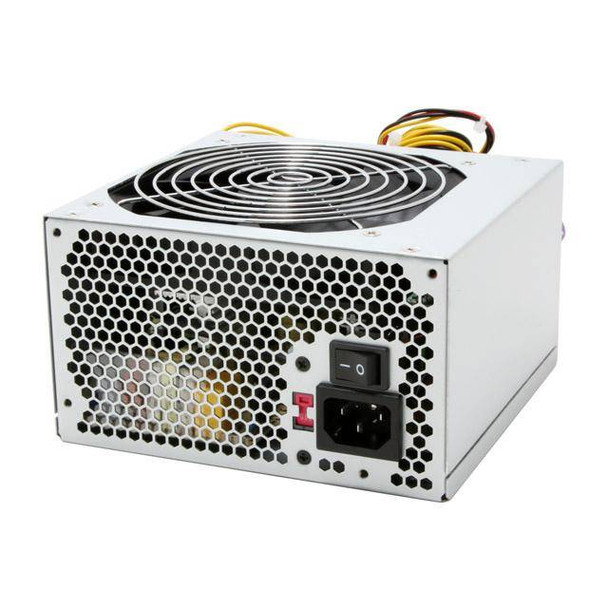

Sparkle ATX-400PN-B204 400W 20/24pin Power Supply

(No reviews yet) Write a Review
Brand:
Sparkle
Part Number #
ATX-400PN-B204
Condition:
Refurbished
Availability:
IN STOCK - COMES WITH 30 DAYS WARRANTY
$225.00 $188.00
- You save $37.00
  • Sparkle ATX-400PN-B204 400W 20/24pin Power Supply
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications

  • Mfr Part Number: ATX-400PN-B204
  • Features
    • 20/24pin Main Power connector; SATA connector
    • Complied with ATX12V 2.0 standard
    • High efficiency and reliability
    • Remote On/Off function
    • Internal 12V DC 120mm Ball Bearing fan included
    • Noise Killer (Thermal fan speed control function)
    • Low noise and ripple
    • Complies with FCC part 15 subpart J Class B and CISPR 22 Class B
    • Output over voltage, short circuit, and over current protection
    • 100% Hi-pot, ATE, and burn-in tested
    • Re-settable power shut down
    • Approved by UL 60950, IEC 60950, TUV EN60950, NEMKO (CB Report)
  • Input:
    • Input Range: 100 ~ 132 Vrms or 200 ~ 264 Vrms, Manual selection
    • Frequency: 47 ~ 63 Hz
    • Input Current: 8.5A (RMS) @ 115Vrms/60Hz, 5A (RMS) @ 230Vrms/50Hz
    • Inrush Current: 100A Max cold start, 120A Max warm start measured at 264Vrms/50Hz
  • Output:
    • Total Watts: 400W
    • +3.3V and +5V total output not exceed 150W
    • When +3.3V is load to 30A, the +5V maximum load is 10A
    • When +3.3V is load to 3.0A, the +5V maximum load is 28A
    • +12V1DC, 12V2DC total power not exceed 348W
    • +3.3V, +5V, +12V1DC, and +12V2DC total output not exceed 385W
  • Dielectric Withstand: Input to frame ground 1800V AC for 1 second
  • Efficiency: 70% minimum measured at nominal AC main voltage and frequency with maximum loads on all outputs
  • Rise Time: Less than 20ms on all outputs
  • Hold-up Time: 17ms minimum at nominal input voltage
  • Power Good Signal: Power on delay time 100 ms to 500 ms, off delay 1ms minimum (TTL and CMOS compatible)
  • Leakage Current: Not exceed 3.5mA
  • MTBF: 100,000 hours on maximum load at +25°C
  • Dimension (WxLxH): 6 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
