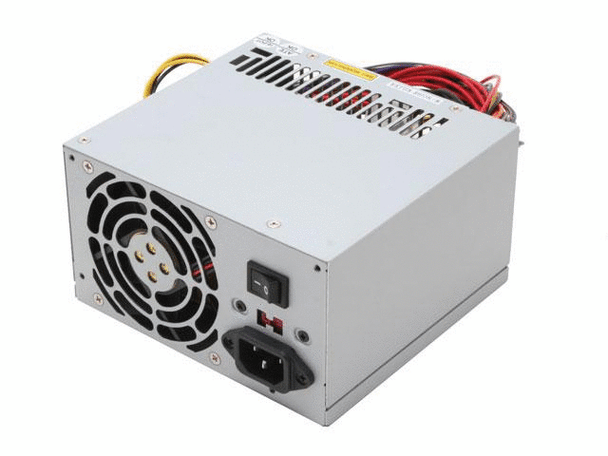

Sparkle ATX-400PA 400W 20/24pin SATA Power Supply
(No reviews yet)
Write a Review
- Brand:
- Sparkle
- Part Number #
- ATX-400PA
- Condition:
- Refurbished
- Availability:
- IN STOCK - COMES WITH 30 DAYS WARRANTY
$301.73
$252.11
- You save $49.62
Description
Specifications
View AllClose
- Mfr Part Number: ATX-400PA
- Features:
- Complied with ATX12V 2.0 standard
- High efficiency and reliability
- Remote On/Off function
- Internal 12V DC fan included
- Noise Killer (Thermal fan speed control function)
- Low noise and ripple
- Complies with FCC part 15 subpart J Class B and CISPR 22 Class B
- Output over voltage, short circuit, and over current protection
- 100% Hi-pot, ATE, and burn-in tested
- Re-settable power shut down
- Approved by UL 60950, IEC 60950, TUV EN60950, NEMKO (CB Report)
- Input:
- Input Range: ±10% of 115Vrms/57~63Hz, ±10% of 230Vrms/47~53Hz, manual selection
- Input Current: 10A (RMS) @ 115Vrms/60Hz, 5A (RMS) @ 230Vrms/50Hz
- Inrush Current: 120A max cold start, 150A warm measured at 115Vrms/60Hz
- Output:
- Total Output: 400 W
- +3.3V and +5V total output not exceed 150W
- +3.3V is load on 22A then +5V maximum load is 11.4A; +5V is load on 22A then +3.3V maximum load is 6A
- +12V1, +12V2 total output not exceed 348W
- +3.3V, +5V, +12V1DC, and +12V2DC total output not exceed 386W
- Dielectric Withstand: Input to frame ground 1800V AC for 1 second
- Efficiency: 70% minimum measured at nominal AC main voltage and frequency with maximum loads on all outputs
- Rise Time: Less than 20ms on all outputs
- Hold-up Time: 12ms minimum at nominal input voltage
- Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible)
- Leakage Current: Not exceed 3.5mA
- MTBF: 100,000 hours on maximum load at +25°C
- Cooling System: 1x 80mm Cooling Fan
- Connectors: 1x 24pin Main power connector; 1x 12V P4 connector; 6x Peripheral connectors; 2x SATA connectors; 1x Floppy connector
- Dimensions (WxLxH): 6 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
