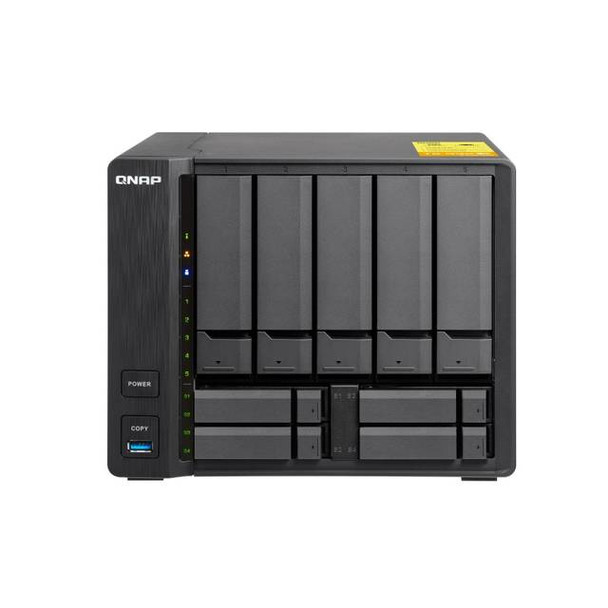

QNAP TS-932X-2G-US Alpine AL-324 ARM Cortex-A57 1.7GHz/ 2GB DDR4/ 4GbE/ 9SATA3/ USB3.0/ 9-Bay Tower NAS Server for SMB
(No reviews yet)
Write a Review
- Brand:
- QNAP
- Part Number #
- TS-932X-2G-US
- Availability:
- In Stock
$1,815.79
$1,513.16
- You save $302.63
Description
Specifications
- Mfr Part Number: TS-932X-2G-US
- Hardware:
- CPU: Alpine AL-324 ARM Cortex-A57 Processor (1.7GHz Clock Speed, Quad Core)
- Encryption Acceleration
- System Memory: 2GB DDR4 2400 (1x 2GB)
- Maximum Memory: 16GB (1x 16GB)
- Memory Slots: 1x SO-DIMM slot
- Flash Memory: 512 MB NAND Flash
- Drive Type: 5x 3.5-inch SATA 6 Gbps bays, 4x 2.5-inch SATA 6 Gbps bays; Hot-swappable
- Drive Compatibility:
- ​3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- 2.5-inch bays: 2.5-inch solid state drives
- LAN Port: 2x 10GbE SFP+ LAN Ports, 2x Gigabit RJ45 LAN Ports
- USB: 3x USB 3.0 Ports (1 front, 2 rear)
- Audio: 1x Built-in speaker, 1x 3.5mm line out jack
- LED Indicator: Status/Power, LAN, USB, HDD 1-5, SSD 1-4
- Button: Power, Reset, USB One- touch-copy
- System Warning: Voice prompts
- Sound Level: Sound pressure (LpAm) - 18.7 dB(A)
- Operating System: QTS 4.3.4 (embedded Linux)
- Networking:
- TCP/IP - Dual Stack (IPv4 & IPv6)
- Service binding based on network interfaces
- Squid Proxy server
- Proxy client
- DHCP client, DHCP server
- Protocols - CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
- UPnP & Bonjour Discovery
- USB Wi-Fi Adapter Support
- Security:
- Network access protection with auto-blocking - SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
- CIFS host access control for shared folders
- FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption
- AES 256-bit external drive encryption
- Importable SSL certiï¬cates
- Instant alert via E-mail, SMS, beep,and push service
- 2-step verification
- Data encryption functions may be unavailable in accordance with the legislative restrictions of some countries
- Storage Management:
- Storage space utilization monitoring
- Flexible volumes and LUNs with thin provisioning and space reclaiming
- Disk volume types
- RAID RAID 0/1/5/6/10/50/60, + hot spare, single, JBOD
- RAID hot spare and global hot spare
- RAID rebuild speed customization
- Advanced secure data erase
- Storage pools
- Qtier Technology (automated storage tiering)
- Snapshots
- Volume and LUN snapshots
- Snapshot Dashboard
- Snapshot Manager
- Snapshot cloning
- Snapshot Vault
- Snapshot Replica
- Unified Snapshot Directory
- Support for Windows Previous Versions (CIFS/SMB)
- Snapshot Agent for Microsoft Windows and VMware vSphere
- 2GB SKU - Max. 32 snapshots per volume/block-based LUN; max. 64 per NAS
- 8GB SKU - Max. 64 snapshots per volume/block-based LUN; max. 256 per NAS
- ​Online volume expansion
- Online storage pool expansion
- Online RAID capacity expansion and online RAID level migration
- SMART data migration
- Bad block scan and hard drive S.M.A.R.T.
- Bad block recovery and RAID recovery
- Bitmap support
- File System:
- Internal HDD: EXT4
- External HDD: EXT3, EXT4, NTFS, FAT32, HFS+
- Form Factor: Tower
- Fan: 1x 14cm smart fan (12V DC)
- Power Consumption (with 5 x HDDs and 4 x SSDs installed):
- ​HDD standby: 21.66W
- In operation: 42.15W
- Power Supply Unit: 120W AC external adapter, 100-240V
- Dimensions (WxDxH): 8.86 x 8.82 x 7.17 inch / 225.0 x 224.0 x 182.0 mm
- Weight: 7.78 lbs / 3.53 kg
