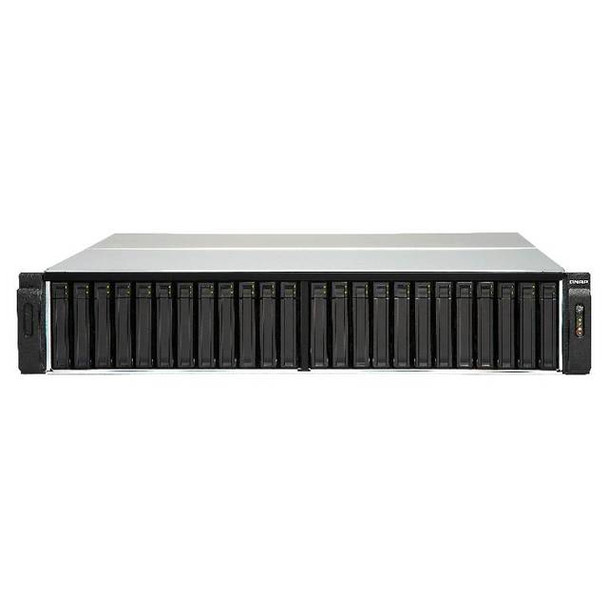

QNAP TES-3085U-D1548-32GR Intel Xeon D-1548 2.0GHz/ 32GB RAM/ 6GbE/ 30SATA3/ 30-Bay 2U Rackmount NAS Server for Enterprise w/ Dual OS Options
(No reviews yet)
Write a Review
- Brand:
- QNAP
- Part Number #
- TES-3085U-D1548-32GR
- Availability:
- In Stock
$15,837.03
$13,197.52
- You save $2,639.51
Description
Specifications
- Mfr Part Number: TES-3085U-D1548-32GR
- Hardware:
- CPU: Intel Xeon D-1548 Processor (2.0 GHz, 8-core)
- Memory: 32GB ECC RAM (4x 8GB RDIMM)
- Flash Memory: 4 GB DOM
- HDD Tray:
- Front: 24x 2.5"
- Rear: 6x 2.5" SSD Slot
- ​Supported Hard Drive:
- ​Front: SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD
- Rear: SATA 6Gb/s SSD
- LAN Port: 2x SFP+ 10GbE Ports, 4x Gigabit Ports
- LED Indicators: 10 GbE, Status, LAN, Storage expansion port status
- Buttons: System - Power button, Reset button
- PCIe Slot: 1x PCI-Express 3.0 x8 Slot, 1x PCI-Express 3.0 x4 Slot, 1x PCI-Express 2.0 x4 Slot, 1x PCI-Express 3.0 x4 Slot or 1x PCI-Express 3.0 x8 Slot
- Operating System: QES 1.1 (based on FreeBSD), QTS 4.2 (embedded Linux)
- QES 1.1 (based on FreeBSD):
- Networking:
- TCP/IP (IPv4 & IPv6)
- 10 /40 Gigabit NICs with jumbo frame (LACP, Load Balance, Failover, Round Robin)
- Service binding based on network interfaces
- Proxy client
- DHCP client
- Protocols: SMB2/SMB3, NFS v3/NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, and SMSC
- Bonjour Discovery
- Security:
- Network access protection with auto-blocking: SSH, HTTP(S), FTP, SMB
- SMB host access control for shared folders
- FIPS 140-2 validated AES 256-bit shared folder and LUN data encryption
- Importable SSL certificates
- Storage Management:
- Storage space utilization monitoring
- Storage pool with RAID 0, 1, 5, 6, 10, 50, 60, RAIDTP, Triple Mirror
- Global hot spare
- SSD read / write cache
- Supports share folder/LUN with thin provisioning
- Supports LUN with instant provisioning
- Supports share folder quota
- Supports space reclaim
- Supports snapshots
- upports Shared Folder/LUN snapshot
- Snapshot manager
- Snapshot clone
- Snapshot agent for Windows VSS and VMware
- Support inline deduplication for Shared Folder/LUN
- Support inline compression for Shared Folder/LUN
- Support inline encryption for Shared Folder/LUN
- Support WORM (Write Once Read Many) for Shared Folder
- Online LUN expansion
- Online Share Folder quota expansion
- Online storage pool expansion
- Hard drive S.M.A.R.T.
- S.M.A.R.T predict data migration
- Time-Limited Error Recovery (TLER)
- Storage expansion via QNAP REXP series expansion units
- JBOD ID Reinitialized
- JBOD enclosure roaming
- RAID recovery
- Checksum for end-to-end data integrity
- Silence error detection and self-healing
- Pool scrub for data verification
- File System: ZFS
- Backup Station:
- Remote replication server over Rsync
- Remote replication server over SnapSync
- Scheduled backup
- Snapshot support for Rsync
- Compression, Dedup, and transfer rate limitation over SnapSync
- Desktop backup with QNAP NetBak Replicator for Windows
- Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, EMC retrospect, Symantec Backup Exec, etc.
- Networking:
- QTS 4.2 (embedded Linux):
- Networking:
- TCP/IP (IPv4 & IPv6: Dual Stack)
- Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
- Service binding based on network interfaces
- Squid Proxy server
- Proxy client
- DHCP client, DHCP server
- Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
- UPnP & Bonjour Discovery
- USB Wi-Fi Adapter Support 802.11ac support may vary by model.
- Network & Virtual Switch
- Security:
- Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
- CIFS host access control for shared folders
- FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption
- AES 256-bit external drive encryption2
- Importable SSL certificates
- Instant alerts via email, SMS, beep, push service, and LCD panel
- 2-step verification
- Storage Management:
- Storage Space Utilization monitoring
- QNAP flexible Volume/LUN with thin provisioning and space reclaim
- Disk volume types: RAID 0, 1, 5, 6, 10, + hot spare, JBOD single
- Supports storage pools
- Supports Qtier Technology (Auto Tiering, 8GB System RAM and SSD drives are required)
- Supports snapshots (4GB System RAM required)
- Supports Volume/LUN snapshot
- Snapshot manager
- Snapshot clone
- Snapshot vault
- Snapshot replica
- Snapshot agent for Microsoft Windows and VMware vSphere
- Online volume expansion
- Online storage pool expansion
- Online RAID capacity expansion and online RAID level migration
- SMART data migration
- Storage expansion via QNAP TX-500P/UX-800P expansion units
- JBOD enclosure roaming
- SSD read-only/read-write cache
- Bad block scan and hard drive S.M.A.R.T.
- Bad block recovery & RAID recovery
- Bitmap support
- File System:
- Internal Hard Drive: EXT4
- External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
- Backup Station:
- Remote replication server (over rsync)
- Real-time remote replication (RTRR) to another QNAP NAS, FTP or CIFS/SMB server
- Works as both RTRR server & client with bandwidth control
- Real-time & scheduled backup
- Backup versioning for RTRR
- Snapshot support for RTRR/Rsync
- Encryption, compression, file filter, and transfer rate limitation
- Desktop backup with QNAP NetBak Replicator for Windows®
- Apple Time Machine backup support
- Data backup to multiple external storage devices
- Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
- Networking:
- Form Factor: 2U Rackmount
- Fan: 4x 6cm smart cooling fan
- Power Supply: Redundant power: Input 90~264VAC; 2x 450W
- Dimensions (WxDxH): 17.28 x 19.07 x 3.47 inch / 439.0 x 484.5 x 88.3 mm
- Weight: 30.82 lbs / 13.98 kg (NAS only)
