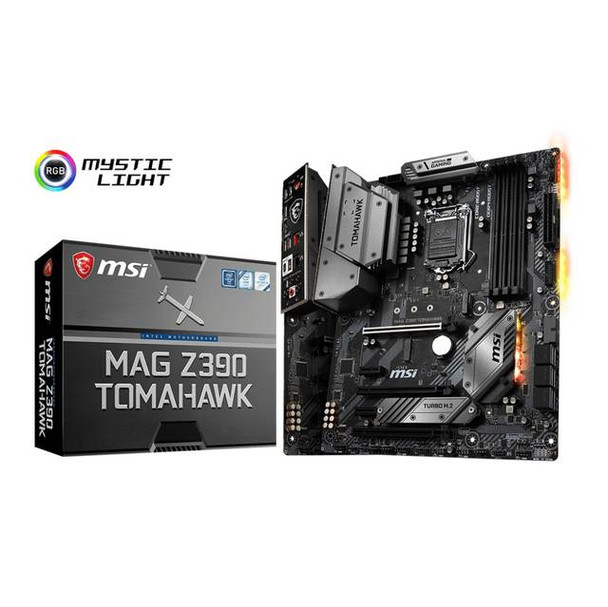

MSI MAG Z390 TOMAHAWK LGA1151/ Intel Z390/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ ATX Moth

(No reviews yet) Write a Review

Brand:

MSI

Part Number #

Z390TOMAHAWK

Availability:

In Stock

$506.07 $421.73

- You save $84.34

Description

Specifications

Mfr Part Number: MAG Z390 TOMAHAWK
CPU: LGA1151
- Supports Intel Core 9000 series, 8th Generation Intel Core/ Pentium Gold/ Celeron Processors
Chipset: Intel Z390
Memory: 4x DDR4-4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz Slots, Dual Channel, Non-ECC, un-buffered, Max Capacity of 64GB
Slots: 3x PCI-Express 3.0 x16 Slots (support x16/x4/x1 modes), 2x PCI-Express 3.0 x1 Slots
Multi-Graphics: Supports AMD 2-Way CrossFireX Technology
Storage:
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
- M.2: 2x M.2 Ports (Key M), one supports PCIe 3.0 x4 and SATA3, 2242/ 2260/ 2280/ 22110 storage devices, one supports PCIe 3.0 x4 and SATA3, 2242/ 2260/ 2280 storage devices
Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
LAN: Intel I219-V and Intel I211-AT Gigabit Ethernet Controllers
Ports: 4x USB 3.1 Gen 2 Ports (3 Type-A rear, 1 Type-C rear), 4x USB 3.1 Gen 1 Ports (via headers), 6x USB 2.0 Ports (2 Type-A rear, 4 via headers), 1x PS/2 Combo Port, 1x HDMI Port, 1x DisplayPort, 1x Optical S/PDIF OUT, 1x RJ45 LAN Port, Audio I/O Jacks
Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector, 1x 4-pin ATX 12V Power Connector
Form Factor: ATX, 9.6 x 12.0 inch / 24.3 x 30.4 cm
