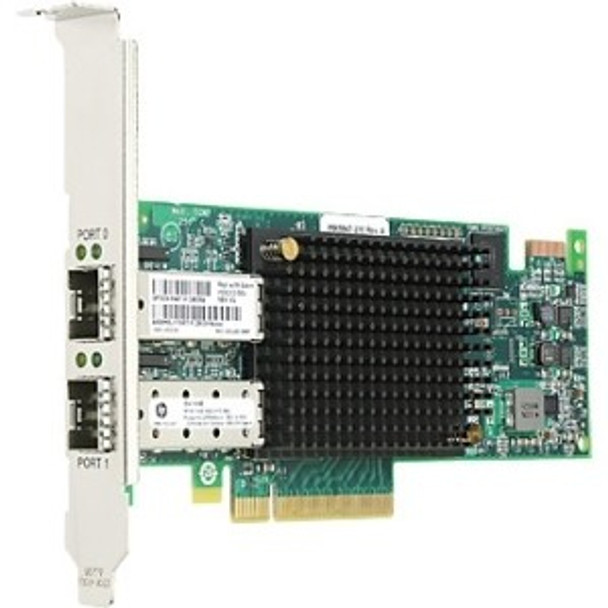

Lenovo 01CV840 Internal Fiber 16000Mbit/s networking card
(No reviews yet)
Write a Review
- Brand:
- LENOVO
- Part Number #
- 01CV840
- Availability:
- In Stock
$3,574.46
$2,978.72
- You save $595.74
Description
| Ports & interfaces | |
|---|---|
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | FC,SFP+ |
| Internal | Yes |
| Interface | Fiber |
| Host interface | PCIe |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Data transfer rate (max) | 16000 Mbit/s |
| Networking | |
| Maximum operating distance | 5905.5" (150 m) |
| Technical details | |
| Compatible products | System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4) |
| Colour of product | Black, Green, Silver |
| Rack mounting | 2U |
| Web-based management | Yes |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Mean time between failures (MTBF) | 10000000 h |
| Software | |
| Linux operating systems supported | RedHat EL Linux 6.0,RedHat EL Linux 7.0,SuSE Linux 11,SuSE Linux 12.0 |
| Other operating systems supported | VMware vSphere ESXi |
| Indication | |
| LED indicators | Yes |
| Design | |
| Dell E-Value Code | ATZV |
| Colour of product | Black, Green, Silver |
| Rack mounting | 2U |
| LED indicators | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2012,Windows Server 2012 R2 |
| Compatible products | System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4) |
| Web-based management | Yes |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Linux operating systems supported | RedHat EL Linux 6.0,RedHat EL Linux 7.0,SuSE Linux 11,SuSE Linux 12.0 |
| Other operating systems supported | VMware vSphere ESXi |
| PCI-SIG* SR-IOV Capable | Yes |
| Mean time between failures (MTBF) | 10000000 h |
| System requirements | |
| Recommended usage | Server |
| Weight & dimensions | |
| Depth | 6.61" (168 mm) |
| Height | 2.72" (69 mm) |
| Certificates | |
| Certification | AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea MSIP, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A UL recognized to UL60950-1 2nd Edition |
| RoHS compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Mounting brackets included | Yes |
| Low-profile bracket | Yes |
| Package type | Box |
| Number of products included | 1 pcs |
