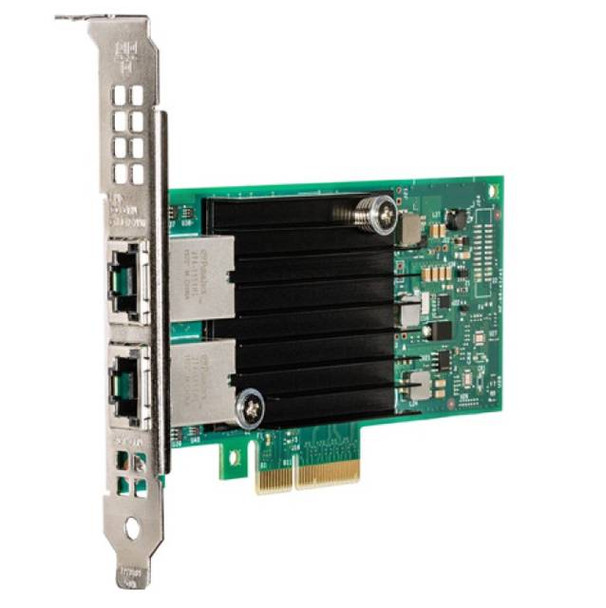

Intel X550T2BLK Dual-Port PCI-Express x4 Ethernet Converged Network Adapter
(No reviews yet)
Write a Review
- Brand:
- Intel
- Part Number #
- X550T2BLK
- Availability:
- In Stock
$813.03
$650.43
- You save $162.60
Description
Specifications
- Mfr Part Number: X550T2BLK
- Features:
- Intel Ethernet Converged Network Adapter X550
- Enhanced Low-Profile Solution
- RJ45 Connections Over CAT 6A Cabling
- Remote Boot iSCSI and FCoE
- Support For Most Network Operating Systems (NOS)
- RoHS-compliant, Lead-free Technology
- Intel Backing
- I/O Features for Multi-Core Processor Servers:
- MSI-X support
- Low Latency
- Header splits and replication in receive
- Multiple Queues - 64 Tx and Rx Per Port
- Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
- Tx TCP segmentation offload (IPv4, IPv6)
- IPsec
- Compatible with x4, x8 and x16 Standard and Low-profile PCIe Slot
- Receive and Transmit Side Scaling for Windows Environment and Scalable I/O for Linux Environments (IPv4, IPv6 and TCP/ UDP)
- Virtualization Features:
- Multi-mode I/O Virtualization Operations
- VXLAN Stateless Offloads
- NVGRE Stateless Offloads
- Virtual Machine Device Queues (VMDq)
- 64 Transmit (Tx) and Recive (Rx) Queue Pairs Per Port
- FPP - 64 VFs Per Port
- Support for PCI-SIG SR-IOV Specification
- IEEE 802.1Q VLAN Support with VLAN Tag Insertion, Stripping and Packet Filtering for up to 4096 VLAN tags
- Adapter Product Features:
- Intel PROSet Utility for Easy Configuration and Management
- Intel Lead-free technology
- Plug and play specification support
- Full-height bracket installed; low-profile bracket included in package
- Cabling Distances
- 10GBASE-T - 100 m using CAT 6A, 55 m using CAT 6
- 100BASE-T - 100 m using CAT 5e, CAT6 or CAT 6A
- Receive-Side Scaling
- Network Management:
- Wired for Management (WfM) Baseline v2.0 Enabled for Servers
- DMI 2.0 Support, Windows Management Instrumentation (WMI) and SNMP
- Remote Installation Services (RIS)
- PXE 2.0 Enabled Through Boot Read-only Memory (ROM)
- Controller Processor: Intel Ethernet Controller X550
- Connectors: RJ45 Copper
- Data Rate: 100 Mb/s, 1 GbE and 10 GbE
- Cable Medium: Copper
- Cabling Type: RJ-45 Category-6 up to 55m; Category-6A up to 100m
- Bracket Height: Low Profile and Full Height
- Bus Type: PCI Express 3.0 (8.0 GT/s)
- Bus Width: x4 lane PCIe, operable in x8 and x16 slots
- Interrupt Levels: INTA, MSI, and MSI-X
- Power Consumption (Average):
- 100 Mbps: 3.9 Watts
- 1 Gbps: 5.5 Watts
- 10 Gbps: 11.2 Watts
- RoHS Compliant
