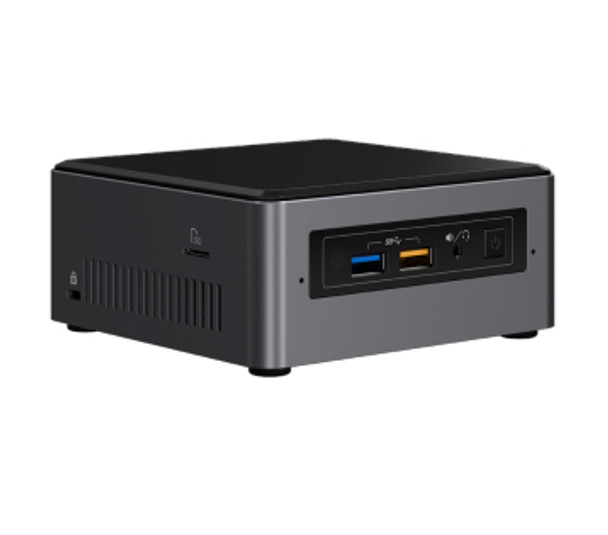

Intel NUC7I3BNH BGA 1356 2.40GHz i3-7100U Black
(No reviews yet)
Write a Review
- Brand:
- Intel
- Part Number #
- BOXNUC7I3BNH
- Availability:
- In Stock
$688.13
$550.51
- You save $137.62
Description
| Motherboard | |
|---|---|
| Processor socket | BGA 1356 |
| Processor | |
| Thermal Design Power (TDP) | 15 W |
| L3 cache | 3 MB |
| Built-in processor | Yes |
| Processor model | i3-7100U |
| Processor threads | 4 |
| Processor frequency | 2.40 GHz |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor cores | 2 |
| Processor family | 7th gen IntelÌâå¨ CoreÌ¢Û?å¢ i3 |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual |
| Memory bandwidth (max) | 34.1 GB/s |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 32 GB |
| Video | |
| On-board graphics adapter | Yes |
| Graphics adapter | HD Graphics 620 |
| Graphics adapter family | Intel |
| Maximum graphics adapter memory | 32000 MB |
| Storage | |
| Supported storage drive types | HDD, SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, PCI Express, Serial ATA |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 2 TB |
| RAID levels | 0, 1 |
| Compatible memory cards | MicroSDHC |
| Card reader integrated | Yes |
| Graphics | |
| On-board graphics adapter | Yes |
| Graphics adapter | HD Graphics 620 |
| Graphics adapter family | Intel |
| Maximum graphics adapter memory | 32000 MB |
| Audio | |
| IntelÌâå¨ High Definition Audio (IntelÌâå¨ HD Audio) | Yes |
| Audio output channels | 7.1 channels |
| Networking | |
| Wi-Fi standards | IEEE 802.11ac |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I219-V |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 4 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.0 |
| Mini DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| On/off switch | Yes |
| LED indicators | Power |
| Colour of product | Black |
| Performance | |
| Intel Visual BIOS | Yes |
| Intel Express BIOS update | Yes |
| BIOS type | EEPROM |
| Number of displays supported | 3 |
| Trusted Platform Module (TPM) | No |
| BIOS memory size | 64 MB |
| Software | |
| Operating system installed | No |
| Processor special features | |
| Intel TSX-NI | No |
| IntelÌâå¨ Smart Response Technology | Yes |
| IntelÌâå¨ Small Business Advantage (IntelÌâå¨ SBA) | Yes |
| IntelÌâå¨ Secure Key | Yes |
| IntelÌâå¨ OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Thermal Monitoring Technologies | Yes |
| IntelÌâå¨ Wireless Display (IntelÌâå¨ WiDi) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| IntelÌâå¨ Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| IntelÌâå¨ Quick Sync Video Technology | Yes |
| IntelÌâå¨ My WiFi Technology (IntelÌâå¨ MWT) | Yes |
| IntelÌâå¨ InTruÌ¢Û?å¢ 3D Technology | Yes |
| IntelÌâå¨ InsiderÌ¢Û?å¢ | Yes |
| IntelÌâå¨ Hyper Threading Technology (IntelÌâå¨ HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| IntelÌâå¨ Clear Video HD Technology (IntelÌâå¨ CVT HD) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| IntelÌâå¨ vProÌ¢Û?å¢ Technology | No |
| IntelÌâå¨ AES New Instructions (IntelÌâå¨ AES-NI) | Yes |
| Intel Rapid Storage Technology | Yes |
| Embedded options available | Yes |
| Colour | |
| Colour of product | Black |
| Technical details | |
| BIOS type | EEPROM |
| IntelÌâå¨ vProÌ¢Û?å¢ Technology | No |
| IntelÌâå¨ AES New Instructions (IntelÌâå¨ AES-NI) | Yes |
| Intel Rapid Storage Technology | Yes |
| IntelÌâå¨ High Definition Audio (IntelÌâå¨ HD Audio) | Yes |
| Embedded options available | Yes |
| Trusted Platform Module (TPM) | No |
| RAID levels | 0, 1 |
| Quick start guide | Yes |
| Processor cores | 2 |
| BIOS memory size | 64 MB |
| ARK ID | 95066 |
| Packaging data | |
| AC adapter included | Yes |
| Indication | |
| LED indicators | Power |
| Management features | |
| On/off switch | Yes |
| Features | |
| Number of displays supported | 3 |
| Power | |
| AC adapter output voltage | 19 V |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 Ìâå¡C |
| Operating temperature (T-T) | 0 - 40 Ìâå¡C |
| Weight & dimensions | |
| Width | 4.53" (115 mm) |
| Depth | 4.37" (111 mm) |
| Height | 2.01" (51 mm) |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Other features | |
| Embedded options available | Yes |
