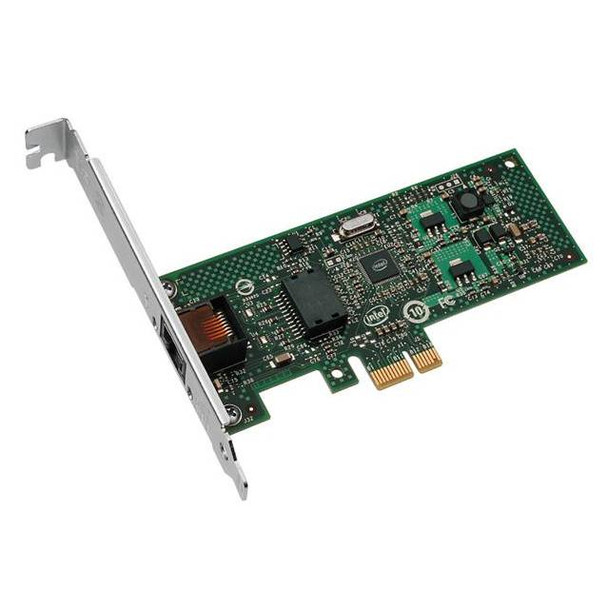

Intel EXPI9301CTBLK Gigabit CT PCI-Express x1 Desktop Adapter,
(No reviews yet)
Write a Review
- Brand:
- Intel
- Part Number #
- 920-008357
- Availability:
- In Stock
$225.00
$188.00
- You save $37.00
Description
Specifications
View AllClose
- Mfr Part Number: EXPI9301CTBLK
- Feature
- Intel 82574L Gigabit Ethernet Controller
- Interrupt moderation
- PCI Express x1 slot compatible
- Compatible with Fast Ethernet and Ethernet
- 10/100/1000 Mbps auto-negotiation
- Support for most network operating systems
- Advanced configuration and power interface (ACPI); Wake on LAN (WoL); Preboot Execution Environment (PXE)
- Remote Management Support
- Intel PROSet Utility for Microsoft Device Manager
- Advanced cable diagnostics
- Intel backing
- Optimized queues: 2 Transmit (Tx) and 2 Receive (Rx)
- MSI-X support
- General
- Connectors: RJ-45
- IEEE Standard/Network Topology: 10/100/1000BASE-T
- Wiring: Category-5 UTP, 4-pair
- Adapter Product Features
- Intel PROSet Utility for easy configuration and management
- RoHS1
- Plug and play specification support Standard
- Auto-negotiation, full-duplex capable
- Integrated media access control (MAC) and physical layer (PHY)
- Cable distance 100m Category-5 for 1000/100 Mbps; Category-3 for 10 Mbps
- Ships with full-height bracket installed, low-profile bracket added in package
- Receive-side scaling (RSS)
- 9 KB jumbo frames
- Network Management
- Wired for Management (WfM) Baseline v2.0 Enabled for Servers
- DMI 2.0 support and Windows Management Instrumentation (WMI)
- Instrumentation (WMI) and SNMP-Remote Installation Services (RIS)
- ACPI 1.0 power management
- Wake on LAN support over PCI Express
- PXE 2.0 enabled through boot read-only memory (ROM)
- Adapter software features:
- Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
- TCP checksum offload � transition control protocol (TCP), user diagram protocol (UDP), Internet protocol (IP)
- IEEE 802.1p, Intel(R) Priority Packet 8
- TCP segmentation/large send offload
- Teaming support
- Interrupt moderation
- Tx/Rx IP
- Techical
- Data Rate Supported per Port: 10, 100 & 1,000 Mbps
- Bus Type: PCI Express 1.1 (2.5 GT/s)
- Bus Width: x1 lane PCI Express operable in x1, x4, x8, x16 slots
- Bus Speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional
- Interrupt Levels: INTA, MSI, MSI-X
- IEEE Support: 802.3z
- Hardware Certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
- ControllerProcessor: Intel 82574L
- Typical Power Consumption: 1.9W
- LED Indicators: LINK/ACTIVITY LED: off=NO LINK; on=LINK; blinking=ACTIVITY SPEED LED: off=10 Mb; green=100 Mb; yellow=1000 Mb
- Dimension(WxLxH): 2.181 x 4.696 x 4.725 inch / 5.53 x 11.92 x 12 cm
- Package: Bulk
