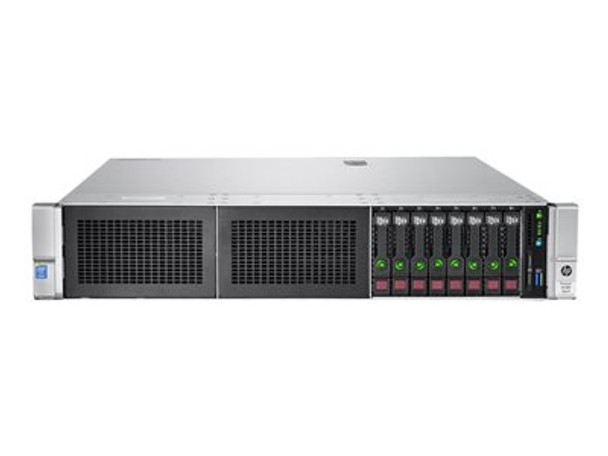

HPE ProLiant DL380 Gen9 Servers - 719064-B21

(No reviews yet) Write a Review
Brand:
HPE
Part Number #
719064-B21
Availability:
In Stock
$1,638.94 $1,365.78
- You save $273.16
  • HPE ProLiant DL380 Gen9  Servers - 719064-B21
Don't like the price? Make an offer!
Get bulk pricing

Description

Main Specifications

Product Description HPE ProLiant DL380 Gen9 - no CPU - 0 MB - 0 GB
Type Server - rack-mountable
Height (Rack Units) 2U
Localization Worldwide (excluding China, Japan)
Server Scalability 2-way
Processor No CPU
RAM 0 MB (installed) / 1.5 TB (max) - DDR4 SDRAM
Storage Controller RAID ( SATA 6Gb/s ) ( HP Dynamic Smart Array B140i )
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Graphics Controller Matrox G200eH2
Video Memory 16 MB
Networking GigE
Power Redundancy Optional
Dimensions (WxDxH) 17.5 in x 26.7 in x 3.4 in
Weight 32.54 lbs
Pricing Type CTO
Manufacturer Warranty 3 years warranty - on-site



Extended Specifications

General
Type Server
Recommended Use Small business, corporate business
Product Form Factor Rack-mountable - 2U
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability 2-way
Hot-Swap Bays Qty 8
Localization Worldwide (excluding China, Japan)
Processor / Chipset
CPU No CPU
Max CPU Qty 2
CPU Upgradability Upgradable
RAM
Installed Size 0 MB / 1.5 TB (max)
Technology DDR4 SDRAM
Form Factor DIMM 288-pin
Features HP SmartMemory
RAM Supported PC4-17000 - 768 GB - registered ¦ PC4-17000 - 1.5 TB - Load-Reduced
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - integrated
Controller Interface Type SATA 6Gb/s
Storage Controller Name HP Dynamic Smart Array B140i
Channel Qty 10
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Graphics Processor Matrox G200eH2
Video Memory 16 MB
Video Interfaces VGA
Networking
Type Integrated
Interface (Bus) Type PCI Express x2
Ethernet Ports 4 x Gigabit Ethernet
Ethernet Controller HP 331i
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Integrated Lights-Out 4
Features Wake on LAN (WoL), PXE support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion / Connectivity
Bays 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - half-length, full-height ( x8 mode ) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 1 x VGA ¦ 5 x USB 3.0 ( 1 front, 2 rear, 2 internal )
Miscellaneous
Included Accessories HP Quick Release Ears
Features Administrator password, power-on password, UEFI BIOS
Compliant Standards ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438
Pricing Type CTO
Power
Device Type Power supply - hot-plug
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Installed Qty 0
Max Supported Qty 2
Operating System / Software
OS Certified SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, Canonical Ubuntu
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts and labor - 3 years - on-site
Dimensions & Weight
Width 17.5 in
Depth 26.7 in
Height 3.4 in
Weight 32.54 lbs
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% (non-condensing)
Sound Emission 23 dBA
