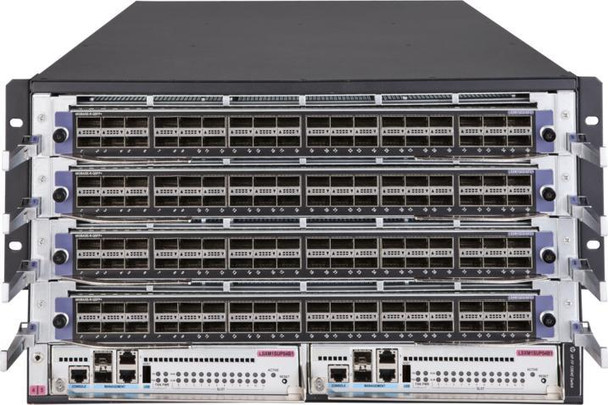

HPE FlexFabric 12904E Switch Chassis - switch - managed - rack-mountable

(No reviews yet) Write a Review
Brand:
HPE
Part Number #
JH262A
Availability:
In Stock
$8,986.75 $7,488.96
- You save $1,497.79
Don't like the price? Make an offer!
Get bulk pricing

Description

Main Specifications

Product Description HPE FlexFabric 12904E Switch Chassis - switch - managed - rack-mountable
Device Type Switch - L3 - managed
Enclosure Type Rack-mountable 6U
Performance Switching capacity : 11.5 Tbps ¦ Throughput : 7.2 Bpps
Routing Protocol OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, BGP+
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SSH-2
Features Flow control, NAT support, VPN support, ARP support, VLAN support, IGMP snooping, IPv6 support, Link Fault Signaling (LFS), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Data Center Bridging Exchange (DCBX) support, IPSec Virtual Private Network (VPN), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Per-VLAN Spanning Tree Plus (PVST+), Device Link Detection Protocol (DLDP) support, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), IPv4 support, LACP support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Data Center Bridging (DCB), fan tray, DHCP client, Management Information Base (MIB), NTP time synchronization, FCoE forwarding, Class of Service (CoS), UDP/IP offloading, Edge Virtual Bridging (EVB), Intelligent Resilient Framework Technology (IRF), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP), SNMP support, IP source guard
Compliant Standards IEEE 802.3, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 17.3 in x 33.7 in x 10.4 in
Weight 79.37 lbs
Manufacturer Warranty 1 year warranty



Extended Specifications

General
Device Type Switch - L3 - managed
Enclosure Type Rack-mountable - 6U
Performance Switching capacity : 11.5 Tbps ¦ Throughput : 7.2 Bpps
Routing Protocol OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, BGP+
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SSH-2
Encryption Algorithm MD5, AES, IKE, TLS
Authentication Method Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features Flow control, NAT support, VPN support, ARP support, VLAN support, IGMP snooping, IPv6 support, Link Fault Signaling (LFS), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Data Center Bridging Exchange (DCBX) support, IPSec Virtual Private Network (VPN), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Per-VLAN Spanning Tree Plus (PVST+), Device Link Detection Protocol (DLDP) support, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), IPv4 support, LACP support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Data Center Bridging (DCB), fan tray, DHCP client, Management Information Base (MIB), NTP time synchronization, FCoE forwarding, Class of Service (CoS), UDP/IP offloading, Edge Virtual Bridging (EVB), Intelligent Resilient Framework Technology (IRF), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP), SNMP support, IP source guard
Compliant Standards IEEE 802.3, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
Processor 1 x MIPS MIPS64 : 1.2 GHz
RAM 8 GB - DDR3 SDRAM
Flash Memory 1 GB
Expansion / Connectivity
Expansion Slots 4 (total) / 4 (free) x expansion slot ¦ 2 (total) / 2 (free) x MPU ¦ 6 (total) / 6 (free) x Switching Fabric Unit
Installed Modules Qty (Max) 0 (installed) / 12 (max)
Power
Power Device Internal power supply
Installed Qty 0 (installed) / 4 (max)
Voltage Required AC 120/230 V ( 50/60 Hz )
Miscellaneous
Included Accessories Rack mount kit
Compliant Standards ETSI, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 6100-3-2, CAN/CSA C22.2 No. 60950-1, AS/NZS, VCCI Class A, EN 50581, EN 300386, ETS 300 386, FDA 21CFR1040.10, EN 55024, EN 55022 Class A, FCC CFR47 Part 15 A
Software / System Requirements
Software Included Command Line Interface (CLI), HP Intelligent Management Center
Dimensions & Weight
Width 17.3 in
Depth 33.7 in
Height 10.4 in
Weight 79.37 lbs
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - advance parts replacement - 1 year ¦ Limited warranty - phone consulting - 1 year ¦ Limited warranty - delivery - 10 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 95% (non-condensing)
