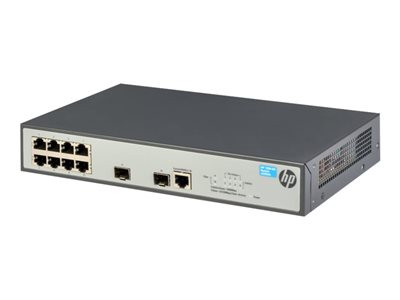

HPE 1920-8G - switch - 8 ports - managed - desktop, rack-mountable, wall-mountable

(No reviews yet) Write a Review
Brand:
HPE
Part Number #
JG920A
Availability:
In Stock
$393.54 $327.95
- You save $65.59
  • HPE 1920-8G - switch - 8 ports - managed - desktop, rack-mountable, wall-mountable
Don't like the price? Make an offer!
Get bulk pricing

Description

Main Specifications

Product Description HPE 1920-8G - switch - 8 ports - managed - desktop, rack-mountable, wall-mountable
Device Type Switch - 8 ports - L3 - managed
Enclosure Type Desktop, rack-mountable, wall-mountable 1U
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x Gigabit SFP
Performance Throughput : 14.8 Mpps ¦ Routing/switching capacity : 20 Gbps
Capacity IPv4 routing table entries : 32 ¦ IPv6 routing table entries : 32
MAC Address Table Size 8192 entries
Jumbo Frame Support 10KB
Routing Protocol Static IPv4 routing, static IPv6 routing
Remote Management Protocol SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Features Flow control, layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Cable Diagnostics Function, STP Root Guard, DHCP relay, Port Security, DHCP client, dual firmware images, Strict Priority Queuing (SPQ), port isolation, static routing, Class of Service (CoS), Single IP Management (SIM)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 10.5 in x 6.4 in x 1.7 in
Weight 31.74 oz
Manufacturer Warranty Limited lifetime warranty
Bundled Services Limited lifetime warranty



Extended Specifications

General
Device Type Switch - 8 ports - L3 - managed
Enclosure Type Desktop, rack-mountable, wall-mountable 1U
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x Gigabit SFP
Performance Throughput : 14.8 Mpps ¦ Routing/switching capacity : 20 Gbps
Capacity IPv4 routing table entries : 32 ¦ IPv6 routing table entries : 32
MAC Address Table Size 8192 entries
Jumbo Frame Support 10KB
Routing Protocol Static IPv4 routing, static IPv6 routing
Remote Management Protocol SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS
Features Flow control, layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Cable Diagnostics Function, STP Root Guard, DHCP relay, Port Security, DHCP client, dual firmware images, Strict Priority Queuing (SPQ), port isolation, static routing, Class of Service (CoS), Single IP Management (SIM)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor 1 x MIPS : 500 MHz
RAM 128 MB - SDRAM
Flash Memory 32 MB
Expansion / Connectivity
Interfaces 8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-X - SFP ¦ 1 x console - RJ-45 - management
Power
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 9 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 128.2 years
Compliant Standards CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, ICES-003 Class A, RoHS, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, EN 61000-3-2:2000
Dimensions & Weight
Width 10.5 in
Depth 6.4 in
Height 1.7 in
Weight 31.74 oz
Manufacturer Warranty
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Product info support - phone consulting - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 - 95% (non-condensing)
