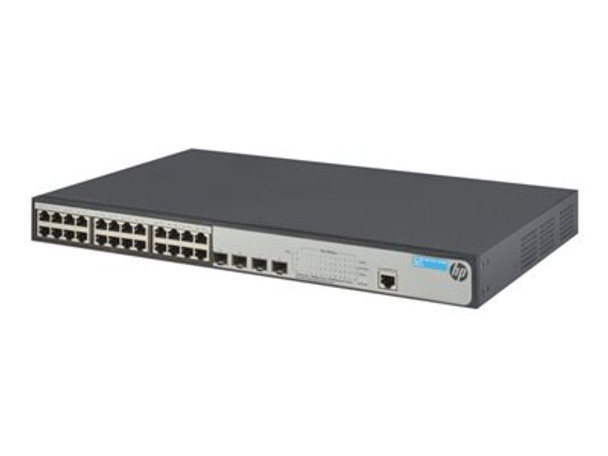

JG926A | HPE 1920-24G-PoE+ - switch - 24 ports - managed

HPE 1920-24G-PoE+ - switch - 24 ports - managed - desktop, rack-mountable

(No reviews yet) Write a Review

Brand:

HPE

Part Number #

JG926A

Availability:

In Stock

$1,029.37 $857.81

- You save $171.56

Description
Read Before Ordering

Description

Main Specifications

Product Description	HPE 1920-24G-PoE+ - switch - 24 ports - managed - desktop, rack-mountable
Device Type	Switch - 24 ports - L3 - managed
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Performance	Throughput : 41.7 Mpps ¦ Routing/switching capacity : 56 Gbps
Capacity	IPv4 routing table entries : 32 ¦ IPv6 routing table entries : 32
MAC Address Table Size	8192 entries
Jumbo Frame Support	10KB
Routing Protocol	Static IPv4 routing, static IPv6 routing
Remote Management Protocol	SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Features	Flow control, layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Cable Diagnostics Function, STP Root Guard, DHCP relay, Port Security, DHCP client, dual firmware images, Strict Priority Queuing (SPQ), port isolation, static routing, Class of Service (CoS), Single IP Management (SIM)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power	AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)	17.3 in x 10.2 in x 1.7 in
Weight	7.5 lbs
Manufacturer Warranty	Limited lifetime warranty
Bundled Services	Limited lifetime warranty

Extended Specifications

General

Device Type	Switch - 24 ports - L3 - managed
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Performance	Throughput : 41.7 Mpps ¦ Routing/switching capacity : 56 Gbps
Capacity	IPv4 routing table entries : 32 ¦ IPv6 routing table entries : 32
MAC Address Table Size	8192 entries
Jumbo Frame Support	10KB
Routing Protocol	Static IPv4 routing, static IPv6 routing
Remote Management Protocol	SNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS
Features	Flow control, layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Cable Diagnostics Function, STP Root Guard, DHCP relay, Port Security, DHCP client, dual firmware images, Strict Priority Queuing (SPQ), port isolation, static routing, Class of Service (CoS), Single IP Management (SIM)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor	1 x MIPS : 500 MHz
RAM	128 MB - SDRAM
Flash Memory	32 MB

Expansion / Connectivity

Interfaces

24 x 1000Base-T - RJ-45 - PoE+ ¦ 4 x 1000Base-X - SFP ¦ 1 x console - RJ-45 - management

Power

Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	474 Watt

Miscellaneous

Rack Mounting Kit	Included
MTBF	65.78 years
Compliant Standards	CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, ICES-003 Class A, RoHS, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, EN 61000-3-2:2000

Dimensions & Weight

Width	17.3 in
Depth	10.2 in
Height	1.7 in
Weight	7.5 lbs

Manufacturer Warranty

Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Product info support - phone consulting - 3 years

Environmental Parameters

Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Storage	10 - 95% (non-condensing)
