JG914A | HPE 1620-48G - switch - 48 ports - managed

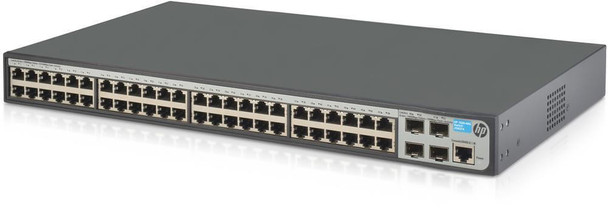

HPE 1620-48G - switch - 48 ports - managed - rack-mountable

(No reviews yet) Write a Review

Brand:

HPE

Part Number #

JG914A

Availability:

In Stock

$972.29 $810.25

- You save $162.05

Description

Product Description	HPE 1620-48G - switch - 48 ports - managed - rack-mountable
Device Type	Switch - 48 ports - managed
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000
Performance	Throughput (64-byte packet size) : up to 71.4 Mpps ¦ Routing/switching capacity : 96 Gbps
MAC Address Table Size	16384 entries
Jumbo Frame Support	10KB
Routing Protocol	IGMPv2, IGMP, IGMPv3
Remote Management Protocol	SNMP 1, SNMP 3, SNMP 2c, CLI
Features	Flow control, full duplex capability, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Quality of Service (QoS), Jumbo Frames support, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, dual firmware images, NTP time synchronization, Loopback, DiffServ Code Point (DSCP) support, cable test
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az
Power	AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)	17.3 in x 9.4 in x 1.7 in
Weight	7.28 lbs
Manufacturer Warranty	Limited lifetime warranty
Bundled Services	Limited lifetime warranty

General

Device Type	Switch - 48 ports - managed
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000
Performance	Throughput (64-byte packet size) : up to 71.4 Mpps ¦ Routing/switching capacity : 96 Gbps
MAC Address Table Size	16384 entries
Jumbo Frame Support	10KB
Routing Protocol	IGMPv2, IGMP, IGMPv3
Remote Management Protocol	SNMP 1, SNMP 3, SNMP 2c, CLI
Features	Flow control, full duplex capability, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Quality of Service (QoS), Jumbo Frames support, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, dual firmware images, NTP time synchronization, Loopback, DiffServ Code Point (DSCP) support, cable test
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az
Processor	1 x MIPS : 650 MHz
RAM	128 MB - SDRAM
Flash Memory	32 MB

Expansion / Connectivity

Interfaces

48 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 - management

Power

Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	28.2 Watt

Miscellaneous

Rack Mounting Kit	Included
MTBF	81.3 years
Compliant Standards	CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, VCCI Class A, CSA 22.2 No. 60950-1

Dimensions & Weight

Manufacturer Warranty

Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - advance parts replacement - lifetime - response time: next business day

Environmental Parameters
