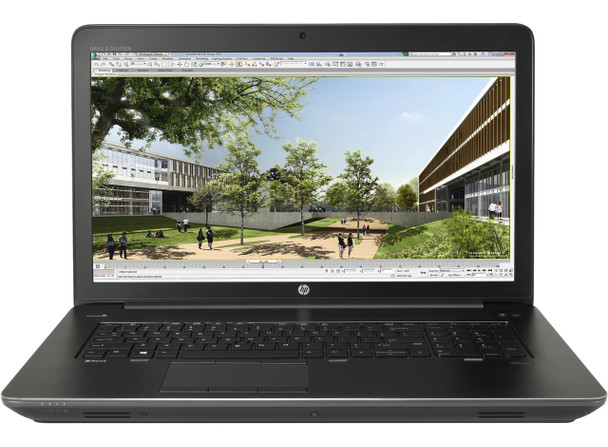

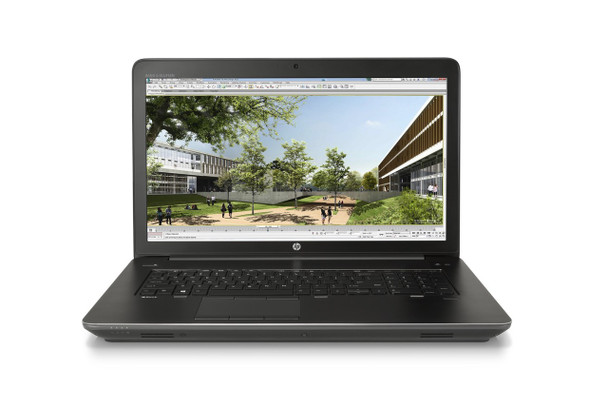

HP ZBook 17 G3 Mobile Workstation (ENERGY STAR)
- Brand:
- HP
- Part Number #
- V2W66UT#ABA
- Availability:
- In Stock
$6,133.32
$4,906.66
- You save $1,226.66
Description
| Design | |
|---|---|
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Colour of product | Black |
| Display | |
| HD type | Full HD |
| Display surface | Matt |
| LED backlight | Yes |
| Aspect ratio | 16:9 |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 17.3" |
| Processor | |
| Stepping | R0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 45 W |
| Processor series | Intel Xeon E3-1500M v5 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| ECC supported by processor | Yes |
| Processor cache type | Smart Cache |
| Conflict Free processor | Yes |
| Processor cache | 8 MB |
| Processor frequency | 2.9 GHz |
| Processor model | E3-1535MV5 |
| Processor boost frequency | 3.8 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 8 GT/s |
| Processor socket | BGA 1440 |
| Motherboard chipset | Intel CM236 |
| Processor family | Intel Xeon E3 v5 |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory slots | 4x SO-DIMM |
| Storage | |
| Storage media | HDD+SSD |
| Number of hard drives installed | 1 |
| Hard drive capacity | 1000 GB |
| Hard drive interface | SATA |
| Hard drive speed | 7200 RPM |
| Number of SSDs installed | 1 |
| Solid-state drive capacity | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
| Total storage capacity | 1512 GB |
| Graphics | |
| Discrete graphics adapter | Yes |
| Discrete graphics adapter memory | 8 GB |
| On-board graphics adapter dynamic frequency (max) | 1050 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 1.7 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter ID | 0x191D |
| Number of discrete graphics adapters installed | 1 |
| On-board graphics adapter | Yes |
| On-board graphics adapter model | Intel HD Graphics P530 |
| Discrete graphics adapter model | NVIDIA Quadro M5000M |
| Discrete graphics memory type | GDDR5 |
| Audio | |
| Speakers manufacturer | Bang & Olufsen |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| 4G | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 3G | No |
| Ports & interfaces | |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| DC-in jack | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Island-style keyboard | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Optional operating system supplied | Windows 10 Pro |
| Operating system installed | Windows 7 Professional |
| Technical details | |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Form factor | Clamshell |
| Colour of product | Black |
| Discrete graphics adapter memory | 8 GB |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | 1 |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| Processor package size | 42 |
| Processor code | SR2FM |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Graphics & IMC lithography | 14 nm |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Processor ARK ID | 89610 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity (Watt hours) | 96 Wh |
| Power | |
| AC adapter power | 200 W |
| Certificates | |
| Energy Star certified | Yes |
| Weight & dimensions | |
| Width | 16.5" (420 mm) |
| Depth | 11" (280 mm) |
| Height | 1.18" (30 mm) |
| Weight | 6.61 lbs (3 kg) |
| Other features | |
| On-board graphics adapter | Yes |
