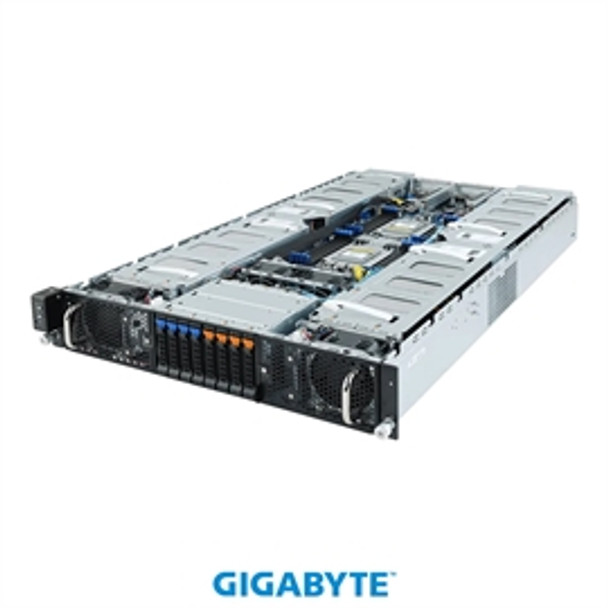

Gigabyte Server G292-Z44 2U HPC Server SP3 AMD EPYC7003(A00) DDR4 128GB 8x2.5" HotSwap Brown Box
(No reviews yet)
Write a Review
- Brand:
- GIGABYTE
- Part Number #
- AS251119
$4,639.15
Description
AMD EPYC 7003 Series Processor (Rome)
The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.
Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
Up to 64 core per CPU, built using Zen 2 high performance cores and AMDs innovative chiplet architecture
Supporting PCIe 4.0 with a bandwidth of up to 64GB/s, twice of PCIe 3.0
Embedded security protection to help defend your CPU, applications, and data
PCIe 4.0 Ready
AMD EPYC Rome is ready to support PCIe 4.0 with a bandwidth of 64GB/s, twice that of PCIe 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTEs AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe 4.0 devices such as AMDs Radeon MI50 GPGPU.
The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).
Higher Memory Speed
AMD EPYCs Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)
Max TDP Support
GIGABYTEs AMD EPYC server platforms come ready to support the full list of AMD EPYC 7002 Series processors: up to 225W (standard TDP) / 280W (cTDP) Motherboard
MZ42-G20
CPU
AMD EPYC 7003 series processor family
Dual processors, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 240W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
LAN
2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2 controller)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp, DDR4 SDRAM
Storage
8 x 2.5" hot-swappable HDD/SSD bays
- 4 x amber HDD trays compatible with Gen3 U.2 or SATA/SAS devices
- 4 x blue HDD trays compatible with SATA/SAS devices only
SAS card is required for SAS devices support
Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
SATA
Supported
SAS
Supported via add-on SAS Card
RAID
Depends on RAID HBA
Peripheral Drives
-
Expansion Slots
8 x PCIe x16 slots (Gen4 x16 bus) for GPUs ( Broadcom solution)
2 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slots
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
Internal I/O
1 x TPM header
Front I/O
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
Backplane I/O
8 x SAS/SATA or 4 x Gen3 U.2 ports and 4 x SAS/SATA
Backplane P/N: 9CBPG083NR-00
Bandwidth: SATA 6Gb/s, SAS 12Gb/s and PCIe Gen3 x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
2+0 2200W 80 PLUS Platinum power supply
AC Input:
- 100-127V/ 14A, 47-63Hz
- 200-240V/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord
System Management
Aspeed AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
View AllClose
The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.
Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
Up to 64 core per CPU, built using Zen 2 high performance cores and AMDs innovative chiplet architecture
Supporting PCIe 4.0 with a bandwidth of up to 64GB/s, twice of PCIe 3.0
Embedded security protection to help defend your CPU, applications, and data
PCIe 4.0 Ready
AMD EPYC Rome is ready to support PCIe 4.0 with a bandwidth of 64GB/s, twice that of PCIe 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTEs AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe 4.0 devices such as AMDs Radeon MI50 GPGPU.
The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).
Higher Memory Speed
AMD EPYCs Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)
Max TDP Support
GIGABYTEs AMD EPYC server platforms come ready to support the full list of AMD EPYC 7002 Series processors: up to 225W (standard TDP) / 280W (cTDP) Motherboard
MZ42-G20
CPU
AMD EPYC 7003 series processor family
Dual processors, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 240W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
LAN
2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2 controller)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp, DDR4 SDRAM
Storage
8 x 2.5" hot-swappable HDD/SSD bays
- 4 x amber HDD trays compatible with Gen3 U.2 or SATA/SAS devices
- 4 x blue HDD trays compatible with SATA/SAS devices only
SAS card is required for SAS devices support
Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
SATA
Supported
SAS
Supported via add-on SAS Card
RAID
Depends on RAID HBA
Peripheral Drives
-
Expansion Slots
8 x PCIe x16 slots (Gen4 x16 bus) for GPUs ( Broadcom solution)
2 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slots
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
Internal I/O
1 x TPM header
Front I/O
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
Backplane I/O
8 x SAS/SATA or 4 x Gen3 U.2 ports and 4 x SAS/SATA
Backplane P/N: 9CBPG083NR-00
Bandwidth: SATA 6Gb/s, SAS 12Gb/s and PCIe Gen3 x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
2+0 2200W 80 PLUS Platinum power supply
AC Input:
- 100-127V/ 14A, 47-63Hz
- 200-240V/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord
System Management
Aspeed AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Read Before Orderings
- Product images are for illustrative purposes only and the final product delivered may vary from the one shown above.
- In some cases, a product sold may arrive in different packaging than its original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
- At checkout, the shipping cost is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
- Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
- Refurbished printers may not have full ink cartridges or laser toners.
- Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
- Please note if you are concerned about any of the above conditions or have any question at all, we highly recommend that you contact us on sales@ithardwarehub.com or call 425-615-6227 before placing an order.
