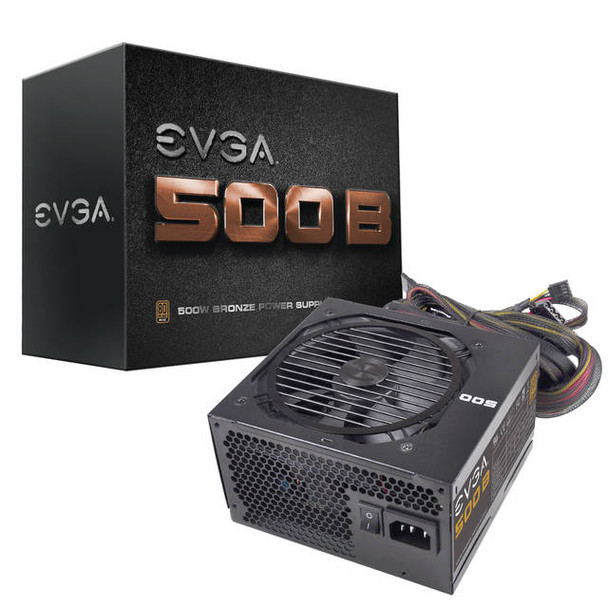

EVGA 500B Bronze 100-B1-0500-KR 500W 80 PLUS Bronze EPS12V Power Supply
(No reviews yet)
Write a Review
- Brand:
- EVGA
- Part Number #
- CSE-101I
- Availability:
- IN STOCK - COMES WITH 30 DAYS WARRANTY
$949.67
$791.39
- You save $158.28
Description
Specifications
- Mfr Part Number: 100-B1-0500-KR
- Features:
- 80 PLUS Bronze Certified, with up to 85% efficiency under typical loads
- High Amperage Single-Rail Design for maximum power and efficiency
- Heavy-duty Protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) and OTP (Over Temperature Protection)
- Maximum Power: 500 W
- Input:
- Voltage: 100 ~ 240 VAC
- Current: 15 A
- Frequency Range: 50 ~ 60 Hz
- Type: EPS12V
- Efficiency: 85% Typical
- Fan: 1x Fan
- Output: +3.3V @ 24A, +5V @ 20A, +12V @ 40A, +5VSB @ 3A, -12V @ 0.3A
- Connectors: 1x 24pin ATX Main Connector, 1x 4+4pin EPS12V Power Connector, 2x 6+2pin PCI-Express Connectors, 6x SATA Connectors, 3x Molex Connectors, 1x FDD Connector
- Approvals: UL, FCC, TUV, CE
- Dimensions (WxLxH): 5.9 x 5.5 x 3.3 inch / 150.0 x 140.0 x 85.0 mm
- Weight: 4.4 lbs / 2.0 kg
Read Before Orderings
- Product images are for illustrative purposes only and the final product delivered may vary from the one shown above.
- In some cases, a product sold may arrive in different packaging than its original retail box. For bulk orders that are packaged together, product manuals or CDs may not always be available for each item.
- At checkout, the shipping cost is a general estimate which is subject to change depending on size/weight/quantity of ordered goods.
- Orders that contain end of life (EOL) products that are no longer in production may be replaced by a compatible product with the same FRU number offering same functionality.
- Refurbished printers may not have full ink cartridges or laser toners.
- Once an order is processed at our warehouse, it cannot be cancelled. A returned order will likely incur a restocking fee. See RMA page for details about restocking fees.
- Please note if you are concerned about any of the above conditions or have any question at all, we highly recommend that you contact us on sales@ithardwarehub.com or call 425-615-6227 before placing an order.
