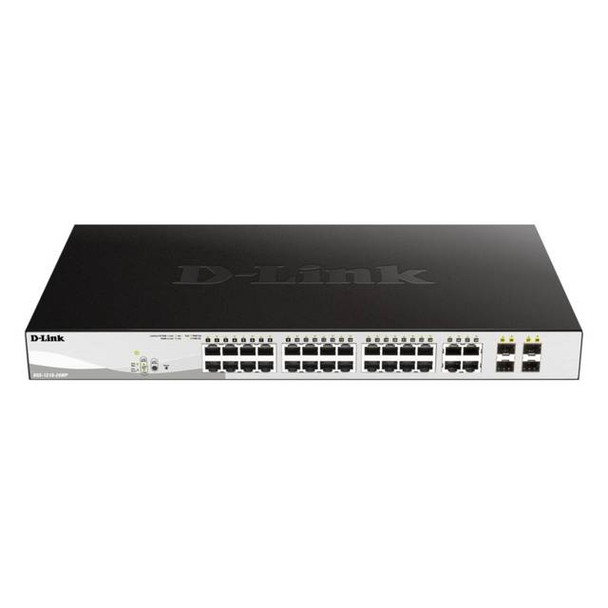

D-Link DGS-1210-28MP 24-Port Gigabit Smart Managed PoE Switch w/ 4x Gigabit RJ45/SFP COMBO Ports & 370W PoE Budget

(No reviews yet) Write a Review
Brand:
D-Link
Part Number #
DGS-1210-28MP
Availability:
In Stock
$1,534.46 $1,278.72
- You save $255.74
  • D-Link DGS-1210-28MP 24-Port Gigabit Smart Managed PoE Switch w/ 4x Gigabit RJ45/SFP COMBO Ports & 370W PoE Budget
Don't like the price? Make an offer!
Get bulk pricing

Description

Specifications

  • Mfr Part Number: DGS-1210-28MP
  • Ports: 24x 10/100/1000 Ports, 4x COMBO Ports (10/100/1000 or 100/1000 SFP)
  • Port Standards & Functions:
    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
    • IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
    • IEEE 802.3az Energy Efficient Ethernet (EEE)
    • IEEE 802.3x Flow Control
    • IEEE 802.3af/at compliance (for PoE ports on PoE models)
  • Network Cables: UTP Cat. 5, Cat. 5e (100 m max.)
  • Duplex Mode: Full/half-duplex for 10/100 Mbps; Full-duplex for 1000 Mbps
  • Media Interface Exchange: Auto MDI/MDIX adjustment for all twisted-pair ports
  • Performance:
    • Switching Capacity: 56 Gbps
    • Transmission Method: Store-and-forward
    • MAC Address Table: 8K entries
    • Static MAC Addresses: 256 entries
    • Max. 64 Byte Packet Fwd Rate: 41.7 Mpps
    • Packet Buffer Memory: 4.1 Mbits
    • CPU Memory: 128 MB DDR3
    • Flash Memory: 32 MB
  • Power Over Ethernet:
    • PoE Standard: 802.3af (PoE) and 802.3at (PoE+)
    • PoE Capable Ports: Ports 1 - 24 (PoE+)
    • PoE Power Budget: 370W
  • Software:
    • L2 Features:
      • MAC Address Table - 8K entries
      • IGMP Snooping - IGMP v1/v2 Snooping; IGMP v3 awareness; Supports 256 IGMP groups; Supports at least 64 static multicast addresses; IGMP per VLAN; Supports IGMP Snooping Querier
      • Loopback Detection
      • 802.3ad Link Aggregation - Maximum of 8 groups/8 ports per group
      • LLDP
      • LLDP-MED
      • Jumbo Frame - Up to 10,000 bytes
      • Spanning Tree Protocol - 802.1D STP; 802.1W RSTP; 802.1s MSTP
      • Flow Control - 802.3x Flow Control; HOL Blocking Prevention
      • Port Mirroring - One-to-One; Many-to-One; Supports Mirroring for Tx/Rx/Both
      • Multicast Filtering - Forwards all unregistered groups; Filters all unregistered groups
      • Configurable MDI/MDIX
      • MLD snooping v1/v2 (256 groups)
    • VLAN:
      • 802.1Q
      • VLAN Group - Max. 256 static VLAN groups
      • Configurable VID from 1 - 4094
      • Asymmetric VLAN
      • Auto Voice VLAN - Max. 10 user-defined OUI; Max. 8 default OUI
      • Auto Surveillance VLAN
    • Quality of Service (QoS):
      • 802.1p Quality of Service
      • 8 queues per port
      • Queue Handling - Strict; Weighted Round Robin (WRR)
      • Bandwidth Control - Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
      • QoS based on - 802.1p priority queues; DSCP; MAC address; EtherType; IP address; Protocol type; ToS; IP preference; IPv6 Traffic Class; TCP/UDP port
    • L3 Features:
      • IP interface - Supports 4 interfaces
      • IPv6 Neighbor Discovery (ND)
      • Static routing - 124 IPv4 static route entries; 50 IPv6 static route entries
    • Access Control List (ACL):
      • Max. 50 access lists
      • Max. 768 rules shared by IPv4, MAC, and IPv6
      • Each rule can only be associated with a single port
      • ACL based on - MAC address - 802.1p priority mask, VID mask, Source/destination MAC address mask, EtherType mask; IP address -  Source/destination IP address mask, DSCP mask, Protocol type mask, TCP/UDP port number mask; IPv6 address - Source/destination IP address mask, DSCP mask, Protocol type mask, TCP/UDP port number mask, IPv6 traffic class mask
    • Security:
      • ​Broadcast/Multicast/Unicast Storm Control
      • D-Link Safeguard Engine
      • Traffic segmentation
      • SSH v2
      • TLS v1.0
      • DoS attack prevention
      • 802.1X Port-based Access Control
      • Port Security - Supports up to 64 MAC addresses per port
      • ARP Spoofing Prevention - Max. 127 entries
      • DHCP Server Screening
      • IP-MAC-Port Binding (Smart Binding) - ARP Inspection - Max. 256 entries; IPv4 Inspection - Max. 127 entries; IPv6 Inspection - Max. 63 entries; DHCP Snooping - Max. 512 entries
    • Management:
      • Web-based GUI
      • D-Link Network Assistant Utility
      • Compact CLI
      • Telnet Server
      • TFTP Client
      • Configurable MDI/MDIX
      • SNMP - Supports v1/v2c/v3
      • SNMP Trap
      • Backup/Upgrade firmware
      • Smart Wizard
      • Upload/Download Configuration file
      • System Log - Max. 500 log entries
      • BootP/DHCP Client
      • SNTP
      • ICMP v6
      • IPv4/v6 Dual Stack
      • DHCP Auto Configuration
      • Time Setting - SNTP
      • RMONv1
      • Trusted Host
      • Dual Image
      • Dual configuration
  • AC Input: 100 - 240 VAC; 50/60 Hz Internal Universal Power Supply
  • Power Consumption:​
    • PoE enabled: 446.1W/100V; 424.8W/240V (Max)
    • PoE off: 29.8W / 100V; 9.0W / 240V (Max)
    • Standby: 18.5 W/100V; 7.1W/240V
  • Fans: 2
  • Acoustics: High speed - 51.7 dB(A); Low speed - 44.9 dB(A)
  • Heat Dissipation: 1521.99 BTU/hr (100 V); 1449.49 BTU/hr (240 V)
  • LEDs:
    • Power per device
    • Console per device
    • Link/Activity/Speed per port
    • PWR Max
    • Fan Error
  • MTBF: 277,967 hours
  • EMI Certifications: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
  • Safety Certifications: CB, UL, BSMI, CCC
  • Dimensions (WxDxH): 17.30 x 9.80 x 1.73 inch / 440.0 x 250.0 x 44.0 mm
  • Weight: 8.7 lbs / 3.94 kg
