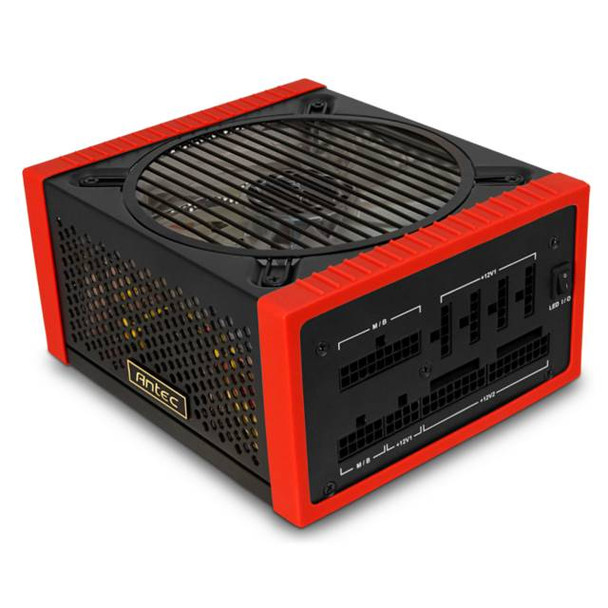

Antec EDGE EDG650 650W 80 PLUS Gold ATX12V 2.4 & EPS12V 2.92 Power Supply
(No reviews yet)
Write a Review
- Brand:
- Antec
- Part Number #
- EDG650
- Condition:
- Refurbished
- Availability:
- IN STOCK - COMES WITH 30 DAYS WARRANTY
$225.00
$188.00
- You save $37.00
Description
Specifications
- Mfr Part Number: EDG650
- Features:
- 650W Continuous Power - Guaranteed 650W of Continuous Power from Antec
- 80 PLUS GOLD certified - Up to 92% efficient, to reduce your electricity bill
- AQ5 - Antec Quality 5 year warranty and lifetime global 24/7 support
- 16-pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- 135 mm LED FDB Silence - Whisper-quiet high-quality LED fluid-dynamic bearing fan with long lifetime
- Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
- High Current Rails - 2 +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
- 99.7% +12V - Output for maximum CPU & GPU support
- 28(18+10)-pin MBU socket - For possible future MBU connectors
- CircuitShield - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), No Load Operation (NLO), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP) & Surge & Inrush Protection (SIP)
- Japanese Heavy-Duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
- Flat Stealth Wires - Flat and darkened wires for minimal visibility in chassis (except MBU cable)
- ATX12V 2.4 - Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- Maximum Power: 650 W
- Input:
- Voltage: 100 - 240 VAC ±10%
- Current: 9 - 4.5A
- Frequency Range: 50 - 60 Hz
- Type: ATX12V 2.4 & EPS12V 2.92
- Power Factor Correction: Active PFC
- Efficiency: Up to 92%
- Fan: 1x 135mm Fluid Dynamic Bearing Fan
- MTBF: ≥100,000 hours
- Output: +3.3V @ 20A, +5V @ 20A, +12V1 @ 35A, +12V2 @ 35A, -12V @ 0.3A, +5Vsb @ 2.5A
- Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin ATX12V/EPS12V Connector, 4x 6+2pin PCI-Express Connectors, 9x SATA Connectors, 6x Molex Connectors, 1x Floppy Connector
- Safety Approvals: cTUVus, FCC, CB, CE, TÜV, CCC, RCM, BSMI, Gost-R
- Dimensions (WxDxH): 5.9 x 6.7 x 3.4 inch / 150.0 x 170.0 x 86.0 mm
- Weight: 4.0 lbs / 1.8 kg (w/o modular cables)
