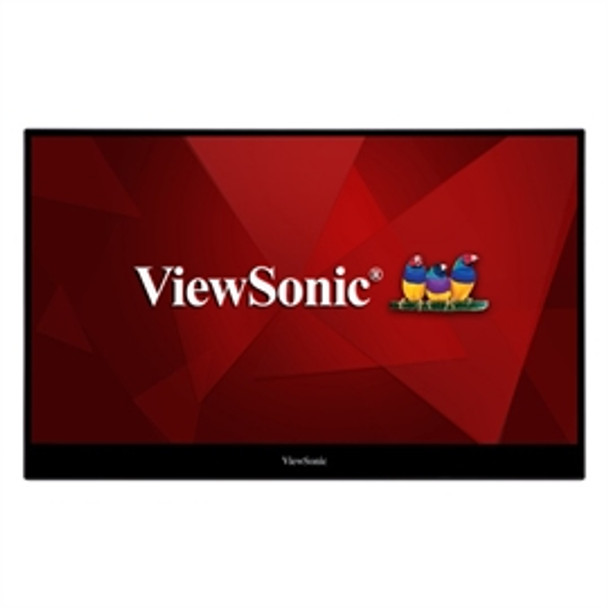

ViewSonic Monitor ID1655 15.6" VB Touch Display 1920x1080 16:9 Active Matrix

The ViewSonic® VB Touch ID1655 is part of ViewSonic’s full line of interactive devices designed for a variety of education scenarios including hybrid teaching at home or in the classroom. The VB Touch 1655 is a portable 15.6” touch display that can serve as a complementary touchscreen to a laptop or tablet for more effective lessons. With an anti-glare screen and Full HD 1080p resolution, this touch display delivers a crystal-clear viewing experience so users can see more and do more for a more efficient workflow. In addition, with a 10-point projective capacitive touchscreen and included stylus pen, the ID1655 delivers a smooth and natural writing experience and streamlined navigation with every tap, pinch, and swipe. Two USB-C ports enable quick and easy transmission of video, audio, and data. The USB-C ports also deliver up to 60W of two-way power: a connected laptop can power the ID1655, OR the ID1655 can power a connected laptop via a USB-C power bank or AC adapter and outlet. Measuring less than an inch thick and weighing only two pounds, the ultra-slim ID1655 perfectly fits into any bag, briefcase, or backpack so you can teach from wherever you are.


WORKS WITH MYVIEWBOARD

Whether for teaching at home or in a traditional classroom, this interactive device works seamlessly with myViewBoard software. This functionality provides intuitive writing, drawing and annotating for an interactive whiteboarding experience in any location.

ULTRA-PORTABLE DESIGN

Measuring a mere 0.6" thick and weighing about 2 pounds, this compact monitor can be easily packed and transported wherever you go.

ADVANCED TOUCH CAPABILITIES AND SCREEN PERFORMANCE

An advanced in-cell capacitive touchscreen provides a smooth and responsive experience with every tap, pinch, and swipe, while also delivering awesome front-of-screen performance and incredible images. DISPLAY
DISPLAY SIZE (IN.)
15.6
VIEWABLE AREA (IN.)
15.6
PANEL TYPE
TN
RESOLUTION
1920 x 1080
RESOLUTION TYPE
Full HD (1920x1080)
STATIC CONTRAST RATIO
800:1
DYNAMIC CONTRAST RATIO
50,000,000:1
LIGHT SOURCE
LED
BRIGHTNESS
250 cd/m2
COLORS
262K
COLOR SPACE SUPPORT
6 bit
ASPECT RATIO
16:9
RESPONSE TIME (TYPICAL GTG)
14ms
RESPONSE TIME (GTG W/OD)
6.5ms
VIEWING ANGLES
170^o horizontal, 170^o vertical
BACKLIGHT LIFE (HOURS)
15,000
PANEL SURFACE
Glossy, Hardness (6H)
COMPATIBILITY
PC RESOLUTION (MAX)
1920x1080
MAC RESOLUTION (MAX)
1920x1080
CONNECTOR
USB 3.2 GEN 1 TYPE C
2
MINI HDMI 1.4
1
TOUCH
TOUCH TECHNOLOGY
Projective Capacitive
TOUCH POINTS
10-Point Touch
AUDIO
INTERNAL SPEAKERS
0.8W (x2)
POWER
ECO MODE (CONSERVE)
6.0W
ECO MODE (OPTIMIZED)
6.9W
CONSUMPTION (TYPICAL)
8.6W
CONSUMPTION (MAX)
10.5W
VOLTAGE
AC 100-240V (universal), 50-60Hz
STAND-BY
0.3W
POWER SUPPLY
Wall type (detachable type-C)
CONTROLS
PHYSICAL CONTROLS
1, 2, 3, 4, 5 (Power)
ON SCREEN DISPLAY
Image Adjust, Contrast, Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
OPERATING CONDITIONS
TEMPERATURE
32-104^o F (0 - 40^o C)
HUMIDITY (NON-CONDENSING)
20-90%
VIDEO SIGNAL
FREQUENCY HORIZONTAL
15 - 82KHz
FREQUENCY VERTICAL
50 - 75Hz
VIDEO INPUT
DIGITAL SYNC
TMDS for miniHDMI (v1.4), Micro-Packet for USB-Type C
ERGONOMICS
TILT (FORWARD/BACK)
0^o / 60^o
GENERAL
REGULATIONS
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT, CEC, MX-CoC, Mexico Energy
PACKAGE CONTENTS
1 x LCD Display, 1 x USB type-C to type-C cable, 1 x USB type-C to type-A cable, 1 x mini HDMI cable, 1 x Power Adapter, 1 x Passive Touch Pen, 1 x Quick Start Guide
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws.
Item Dimension (L"x W"x H")
14 x 9 x 1
Weight
2.10 LB
Warranty Information
3-Year Limited
