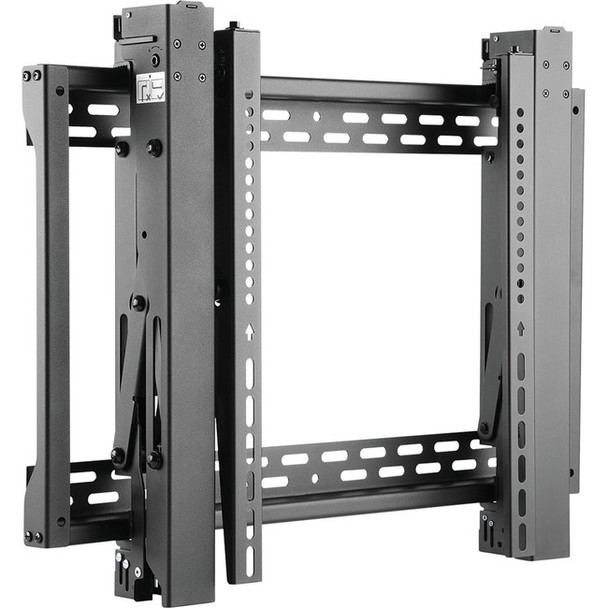

Tripp Lite Pop-Out TV Video Wall Mount TVs & Monitors w/ Security 45-70in - DMVWSC4570XUL

Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: DMVWSC4570XUL
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: DMVWSC4570XUL
Product Name: DMVWSC4570XUL Wall Mount
Marketing Information: Pop-out wall mount supports use of 45" to 70" flat screen TVs or monitors in video walls. Included lock deters theft.

Features
Pop-Out Display Mount is Designed for Video Wall Installations
A pop-out feature and micro-adjustability make the DMVWSC4570XUL wall mount a purpose-built solution for video walls in home theaters, offices, conference centers, medical facilities, airports, hotels, bars, restaurants and security stations. Designed for use with flat screens from 45 to 70 inches, this wall mount is function- and weight-tested to 154 lb. in accordance with UL Standard 2442.

Pop-Out Feature Supports Convenient Cable Access and Screen Adjustments
To unlock the pop-out mechanism, press lightly on the front of your display and pull it toward you. It can extend anywhere from 3.7 to 11 inches from the wall, providing space to access cables or make adjustments. This is especially helpful in video wall installations, where adjacent screens may limit access. The extension also makes it easier to replace a display.

Multi-Directional Micro-Adjustments Provide Exact Alignment
You can move the display left or right, adjust the screen level from -3° to +3° and adjust the tilt from -2° to +4°. For exact positioning in a video wall, there are six micro-adjustments for tilt, height and depth (user- supplied hex key required). When the display is in the perfect position, insert the included plastic locks in the brackets to prevent unintentional movement.

Included Combination Lock Deters Display Theft
A three-position combination lock (included) secures the display bracket to the wall plate to deter theft, which can be a concern in public areas with unguarded traffic. Deterring display theft also protects the mount, which is often damaged beyond repair when a display is stolen. The heavy-duty steel frame withstands the stress of frequent adjustments, and the black powder-coated finish offers durability and scratch resistance. Your display hides the mount and the padlock, maintaining a professional look.

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400 and 600 x 400. Mounting hardware is included.
Product Type: Wall Mount
Product Information
Device Supported:

• TV
• Monitor
• Flat Panel Display

Number of Displays Supported: 1
Maximum Load Capacity: 154.32 lb
Maximum Screen Size Supported: 70"
Physical Characteristics
Color: Black
Material: Steel
VESA Mount Standard:

• 200 x 200
• 300 x 200
• 300 x 300
• 400 x 200
• 400 x 300
• 400 x 400
• 600 x 400

Height: 26.4"
Width: 11.2"
Depth: 20.6"
Weight (Approximate): 25.11 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
