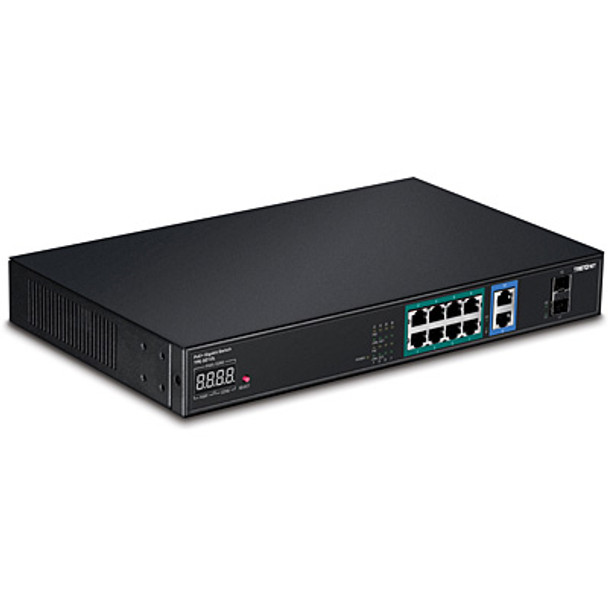

Trendnet TPE-3012L Unmanaged network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (Po

(No reviews yet) Write a Review

Brand:

TRENDnet

Part Number #

TPE-3012L

Availability:

In Stock

$625.19 $520.99

- You save $104.20

Description

Management features
Switch type	Unmanaged network switch
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	2
Networking
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplex	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Data transmission
Jumbo frames	10000
Throughput	14.8 Mpps
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Jumbo frames support	Yes
Design
Form factor	1U
Colour of product	Black
LED indicators	Yes
Certification	FCC, CE, UL RoHS
Rack mounting	Yes
Performance
Buffer size	512 KB
Power
AC input voltage	110-240
AC input frequency	50/60
Power consumption (typical)	7 W
Technical details
Form factor	1U
Colour of product	Black
Rack mounting	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power protection features	Over current
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Certificates
Certification	FCC, CE, UL RoHS
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 Â°C
Weight & dimensions
Width	13" (330 mm)
Depth	7.87" (200 mm)
Height	1.73" (44 mm)
Weight	3.97 lbs (1.8 kg)
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
