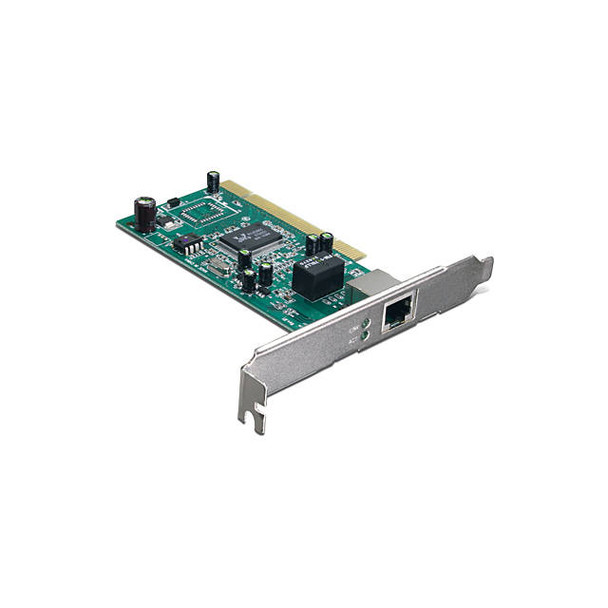

TRENDnet TEG-PCITXR(Version 3.0R) 32-bit Gigabit Ethernet PCI Adapter,
(No reviews yet)
Write a Review
- Brand:
- TRENDnet
- Part Number #
- TEG-PCITXR
- Availability:
- In Stock
$210.00
$175.00
- You save $35.00
Description
Specifications
View AllClose
- Mfr Part Number: TEG-PCITXR
- Features:
- Support 32-Bit PCI Local Bus Master high-speed operation of Rev 2.3 specification
- 1x 10/100/1000Mbps Auto Negotiation and Auto MDI-X Gigabit Port
- Built-in FIFO (8K/64K) buffers reduce overhead of memory transfers
- Supports Full-Duplex mode and doubles the bandwidth to 20/200/2000Mbps
- Supports Windows 98SE/ME/2000/XP/Vista Operating Systems
- Supports Wake-on-LAN for remote wake up
- Supports IEEE 802.1Q VLAN Tagging (Windows 2000 and above only)
- Plug and Play Installation
- Standards:
- IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet, ANSI/IEEE 802.3 Auto-Negotiation
- Network Media:
- Ethernet: UTP Cat 3, 4, 5, EIA/TIA-568 100-ohm STP
- Fast Ethernet: UTP Cat 5, EIA/TIA-568 100-ohm STP
- Gigabit: UTP Cat 5, 5E, 6 EIA/TIA-568 100-ohm STP
- Protocol: CSMA/CD
- Data Transfer Rate:
- Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)
- Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
- Gigabit Ethernet: 1000Mbps (Half-Duplex), 2000Mbps (Full-Duplex)
- Data Rate:
- Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
- Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
- Gigabit: 2000Mbps(Full Duplex)
- Host Interface: 32-bit PCI Rev.2.1/2.2
- Diagnostic LEDs: Link, Activity
- Power Consumption: 3.7 watts (max)
- Driver Support: Windows 98/ME/NT4/2000/XP, Linux Kernel 2.2.x/2.4.x, Netware 5.x/6.x
- Certifications: CE, FCC
- Dimensions: 4.7 x 2.3 x 0.6 inch / 120 x 59 x 15 mm
- Package: Retail
