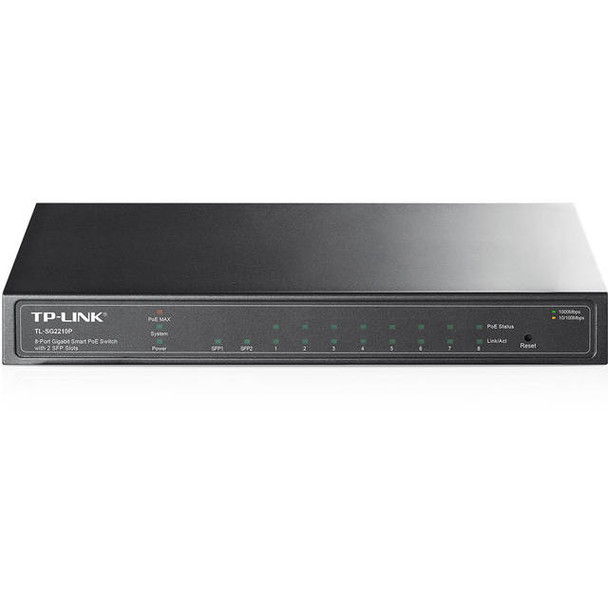

TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch w/ 2 SFP Slots

(No reviews yet) Write a Review

Brand:

TP-Link

Part Number #

TL-SG2210P

Availability:

In Stock

$354.42 $295.35

- You save $59.07

Description
Read Before Ordering

Description

Specifications

Mfr Part Number: TL-SG2210P
Features:
- Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Innovative energy-efficient technology saves up to 50% of power consumption
Hardware Features:
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
- Interface: 8x 10/100/1000Mbps RJ45 Ports, 2x 1000Mbps SFP Slots (Auto Negotiation/Auto MDI/MDIX)
- Network Media:
  - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  - 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
  - 100BASE-FX: MMF, SMF
  - 1000BASE-X: MMF, SMF
- PoE Ports (RJ45):
  - Standard: 802.3af compliant
  - PoE Ports: 8 Ports
  - Power Supply: 53W
- Fan Quantity: Fanless
- Power Consumption: Maximum (PoE on) - 63.4W (220V/50Hz); Maximum (PoE off) - 10.4W (220V/50Hz)
- Power Supply: 100~240VAC, 50/60Hz
- Dimensions (WxDxH): 8.2 x 4.9 x 1.0 inch / 209.0 x 126.0 x 26.0 mm
Performance:
- Bandwidth/Backplane: 20Gbps
- MAC Address Table: 8k
- Packet Buffer Memory: 512KB
- Packet Forwarding Rate: 14.9Mpps
- Jumbo Frame: 9216 Bytes
Software Features:
- Quality of Service:
  - Support 802.1p CoS/DSCP priority
  - Support 4 priority queues
  - Queue Scheduling - SP, WRR, SP+WRR
  - Port/Flow- based Rate Limiting
  - Voice VLAN
- L2 Switching Features:
  - IGMP Snooping V1/V2/V3
  - 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
  - Spanning Tree STP/RSTP/MSTP
  - BPDU Filtering/Guard
  - TC/Root Protect
  - Loop back detection
  - 802.3x Flow Control
  - LLDP(LLDP-MED)
- VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
- Access Control List: L2 ~ L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID, Time Range Based
- Security:
  - SSH v1/v2
  - SSL v2/v3/TLSv1
  - Port Security
  - Broadcast/Multicast/Unknown unicast Storm Control
- Management:
  - Web-based GUI and CLI management
  - SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
  - RMON (1, 2, 3, 9 groups)
  - CPU Monitoring
  - Port Mirroring
  - Time Setting - SNTP
  - Firmware Upgrade - TFTP & Web
  - System Diagnose - VCT
  - SYSLOG & Public MIBS
Others:
- Certification: FCC, CE, RoHS
- Package Contents: TL-SG2210P, Power Adapter, Quick Installation Guide, Resource CD, Rubber Feet
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
- Environment:
  - Operating Temperature: 0^oC~40^oC (32^oF~104^oF)
  - Storage Temperature: -40^oC~70^oC (-40^oF~158^oF)
  - Operating Humidity: 10%~90% non-condensing
  - Storage Huminity: 5%~90% non-condensing
