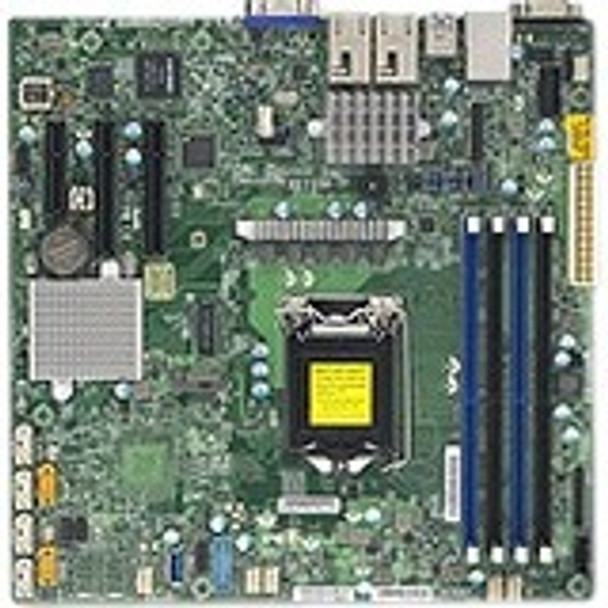

Supermicro X11SSH-TF Server Motherboard - Intel Chipset - Socket

Supermicro X11SSH-TF Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - MBD-X11SSH-TF-B

(No reviews yet) Write a Review

Brand:

SuperMicro

Part Number #

MBD-X11SSH-TF-B

UPC:

672000000000

Availability:

In Stock

$877.97 $731.64

- You save $146.33

Description
Read Before Ordering

Description

Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X11SSH-TF-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X11SSH-TF
Product Name: X11SSH-TF Server Motherboard
Marketing Information: Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)

Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:

Core i3
Celeron
Pentium
Xeon

Memory
Number of Memory Slots: 4
Memory Form Factor:

DIMM
UDIMM

Maximum Memory: 64 GB
Memory Speed Supported:

2.13 GHz
1.87 GHz
1.60 GHz

Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 2
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 8
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.0 Ports: 3
Physical Characteristics
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Miscellaneous
Compatibility: Supermicro SuperChassis

1U Chassis:

SC813MFTQC-505CB
SC113MFAC2-341CB
SC113MFAC2-R606CB
SC813MFTQ-R400CB
SC512F-350B
SC813MTQ-350CB
SC813MFTQC-350CB

2U Chassis:

SC213LT-600LPB
SC825TQ-R720LPB
SC823TQ-653LPB

3U Chassis:

SC833T-653B

Mid/Mini Tower Chassis:

SC732I-500B
SC731i-300B

4U / Tower Chassis:

SC842TQ-665B
SC842i-500B
